SKU: 06B-3-NO26-MB
Major Brand 06B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Major Brand 06B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
$4.89
ex VAT
Regular price
Sale price
$4.89
ex VAT
Equivalent to: 06B-3-CL
In stock
Price Break
10+
$4.35
19+
$4.11
29+
$4.06
39+
$4.01
49+
$3.96
74+
$3.91
99+
$3.67
199+
$3.62
249+
$3.57
499+
$3.52
999+
$3.42
Description
Description

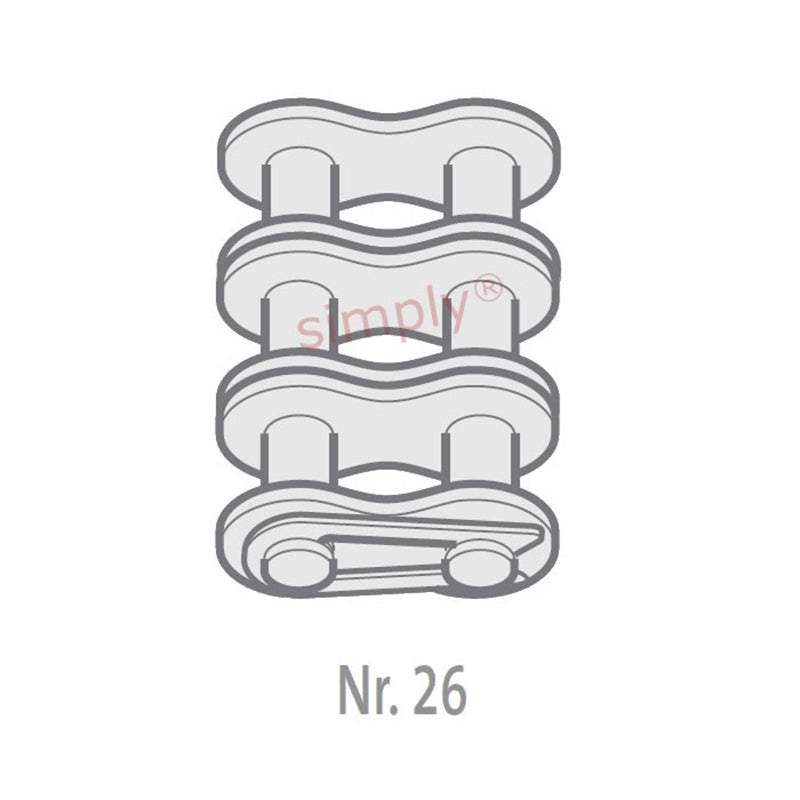

Branded CL / No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 06B-3-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.25mm |
| Plate Width Outer max (F) | 1mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H3) | 35.6mm |
| Connecting Link Extension max (J) | 3mm |
| ISO606 Tensile Strength min | 26250 N |
| Weight | 0.003kg/m |
