SKU: 08B-3-SYN-NO26-RENOLD
Renold Synergy 08B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Renold Synergy 08B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
$34.06
ex VAT
Regular price
Sale price
$34.06
ex VAT
In stock
Price Break
10+
$30.31
19+
$28.61
29+
$28.27
39+
$27.93
49+
$27.59
74+
$27.25
99+
$25.55
199+
$25.20
249+
$24.86
499+
$24.52
999+
$23.84
Description
Description

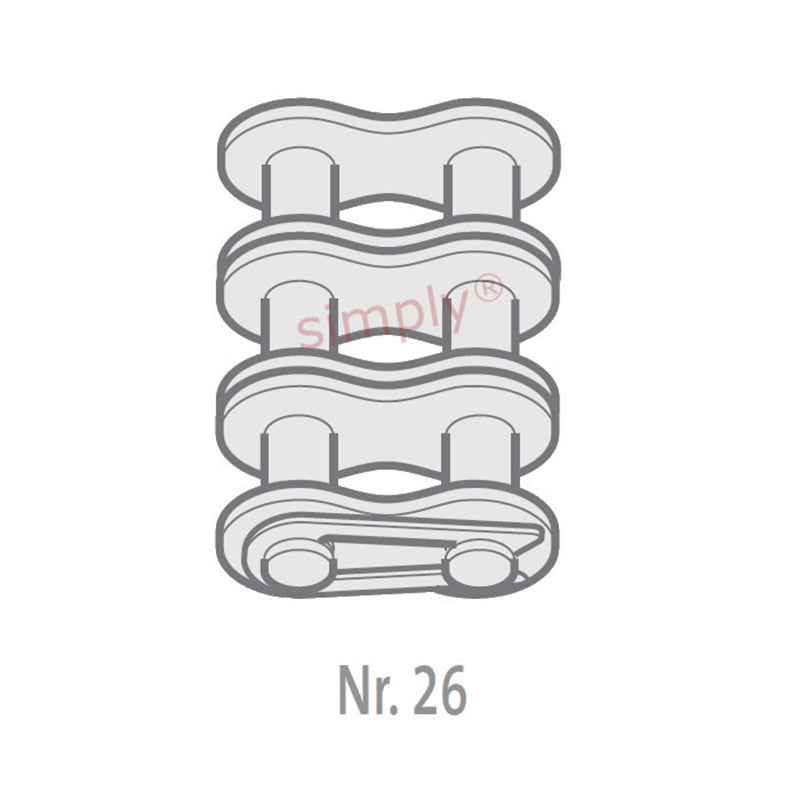

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.7mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H2) | 44.3mm |
| Connecting Link Extension max (J) | 2mm |
| Transverse Pitch nom (K) | 13.92mm |
| ISO606 Tensile Strength min | 44500 N |
| Weight | 0.006kg/m |
