SKU: 1020-3/4DECG-RHP

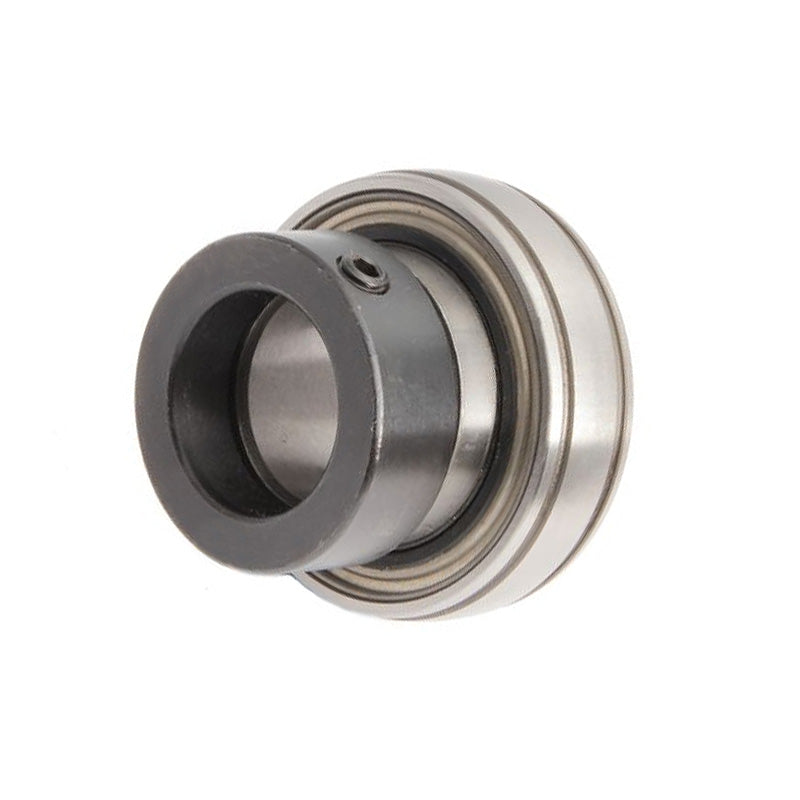

RHP 1020-3/4DECG Spherical Outer Full Width Bearing Insert 3/4 inch Bore 47mm Outside Diameter
RHP 1020-3/4DECG Spherical Outer Full Width Bearing Insert 3/4 inch Bore 47mm Outside Diameter
Regular price
$38.99
ex VAT
Regular price
Sale price
$38.99
ex VAT
In stock
Price Break
10+
$34.70
19+
$32.75
29+
$32.36
39+
$31.97
49+
$31.58
74+
$31.19
99+
$29.24
199+
$28.85
249+
$28.46
499+
$28.07
999+
$27.29
Description
Description
|
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- 1020
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| D | 1.8504 inch |
| C | 0.551 inch |
| B3 | 1.717 inch |
| s2 | 0.674 inch |
| d2 | 1.311 inch |
| r | 0.039 inch |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.2 kg |
