SKU: 1035-1.1/4DECG-RHP

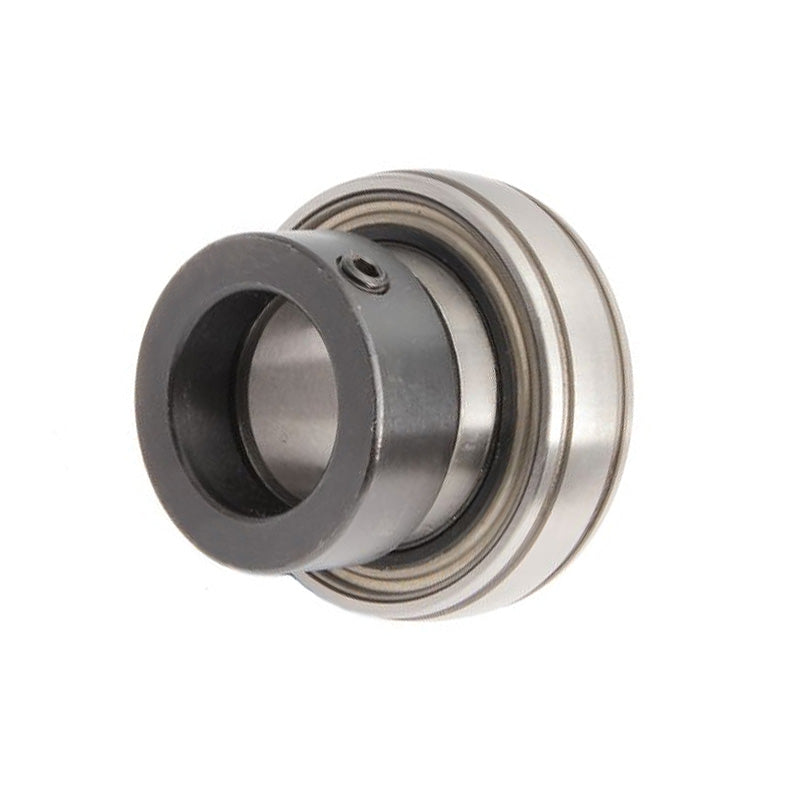

RHP 1035-1-1/4DECG Spherical Outer Full Width Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter
RHP 1035-1-1/4DECG Spherical Outer Full Width Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter
Regular price
$82.57
ex VAT
Regular price
Sale price
$82.57
ex VAT
In stock
Price Break
10+
$73.49
19+
$69.36
29+
$68.53
39+
$67.71
49+
$66.88
74+
$66.06
99+
$61.93
199+
$61.10
249+
$60.28
499+
$59.45
999+
$57.80
Description
Description
|
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Style:
- 1035
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| D | 2.8346 inch |
| C | 0.669 inch |
| B3 | 2.015 inch |
| s2 | 0.744 inch |
| d2 | 2.188 inch |
| r | 0.039 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 0.7 kg |
