SKU: 120-1-NO12-MB
Branded 120-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Branded 120-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Regular price
$11.66
ex VAT
Regular price
Sale price
$11.66
ex VAT
Equivalent to: 120-1-OL
In stock
Price Break
10+
$10.38
19+
$9.79
29+
$9.68
39+
$9.56
49+
$9.44
74+
$9.33
99+
$8.75
199+
$8.63
249+
$8.51
499+
$8.40
999+
$8.16
Description
Description

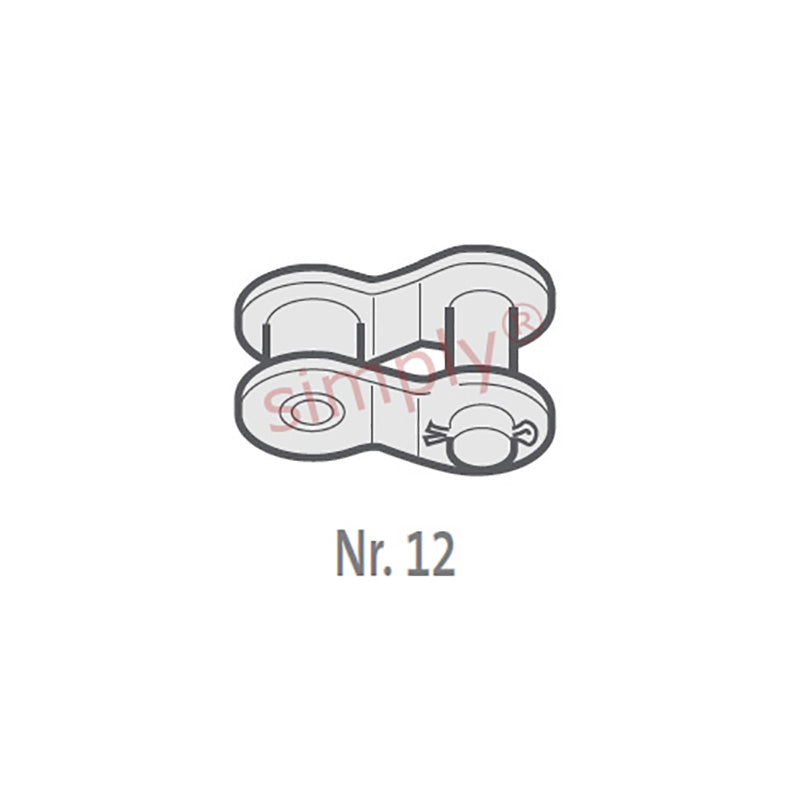

Branded OL / No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 120-1-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.1mm |
| Plate Width Inner max (E) | 4.7mm |
| Plate Width Outer max (F) | 4.7mm |
| Pin Diameter max (G) | 11.1mm |
| Pin Length max (H1) | 50.45mm |
| Connecting Link Extension max (J) | 2.95mm |
| ISO606 Tensile Strength min | 125000 N |
| Weight | 0.079kg/m |
