Renold Synergy 120-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Renold Synergy 120-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Regular price
$953.77
ex VAT
Regular price
Sale price
$953.77
ex VAT
In stock
Price Break
10+
$848.86
19+
$801.17
29+
$791.63
39+
$782.09
49+
$772.55
74+
$763.02
99+
$715.33
199+
$705.79
249+
$696.25
499+
$686.71
999+
$667.64
Description
Description

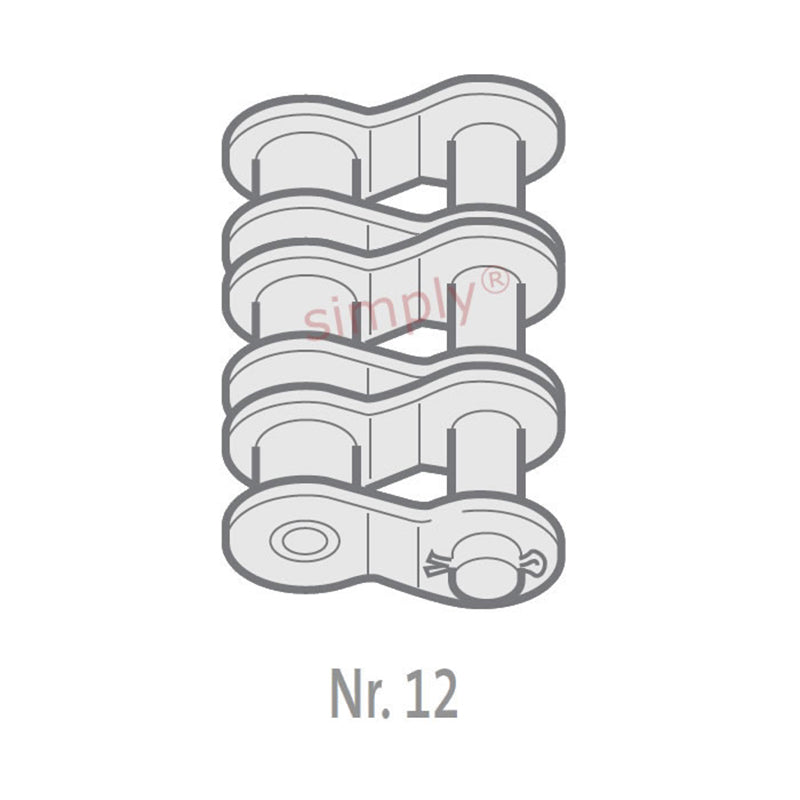

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.2mm |
| Plate Width Inner max (E) | 4.8mm |
| Plate Width Outer max (F) | 4.8mm |
| Pin Diameter max (G) | 11.11mm |
| Pin Length max (H2) | 140.2mm |
| Connecting Link Extension max (J) | 5.3mm |
| Transverse Pitch nom (K) | 45.44mm |
| ISO606 Tensile Strength min | 375000 N |
| Weight | 0.15kg/m |
