SKU: 1220-20G-RHP

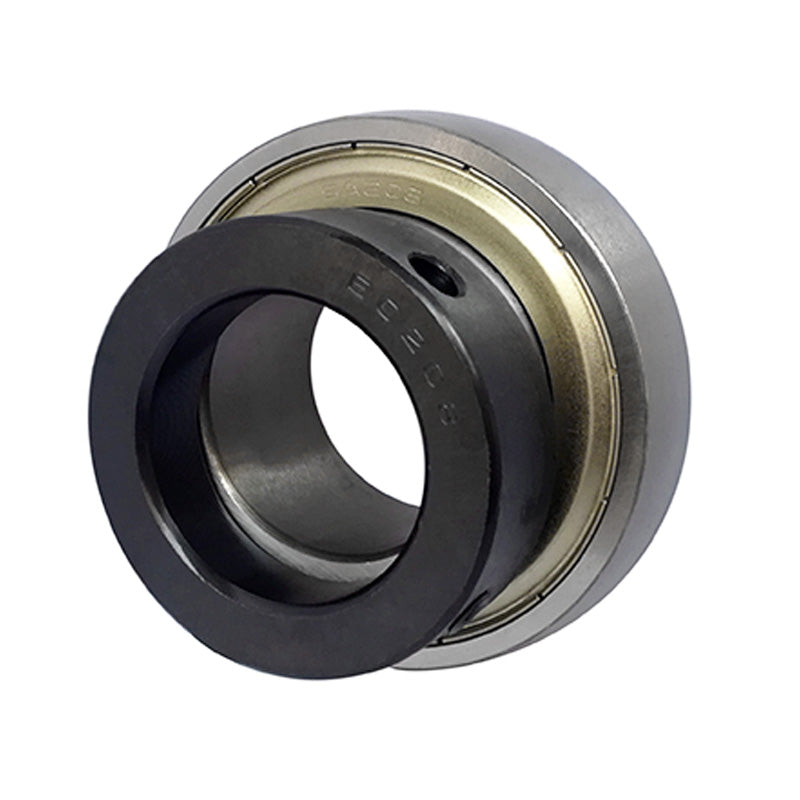

RHP 1220-20G Spherical Outer Flat Back Bearing Insert 20mm Bore 47mm Outside Diameter
RHP 1220-20G Spherical Outer Flat Back Bearing Insert 20mm Bore 47mm Outside Diameter
Regular price
$26.98
ex VAT
Regular price
Sale price
$26.98
ex VAT
In stock
Price Break
10+
$24.01
19+
$22.66
29+
$22.39
39+
$22.12
49+
$21.85
74+
$21.58
99+
$20.24
199+
$19.97
249+
$19.70
499+
$19.43
999+
$18.89
Description
Description
|
RHP 1000 G Series: Flat back bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- 1220
Technical
Technical
| Bore | 20mm |
|---|---|
| D | 47mm |
| C | 14mm |
| B1 | 25.77mm |
| s1 | 7.56mm |
| d1 | 28.5mm |
| M | 5.35mm |
| r | 1mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.1 kg |
