SKU: 138XL-037-69-TRANSFLEX

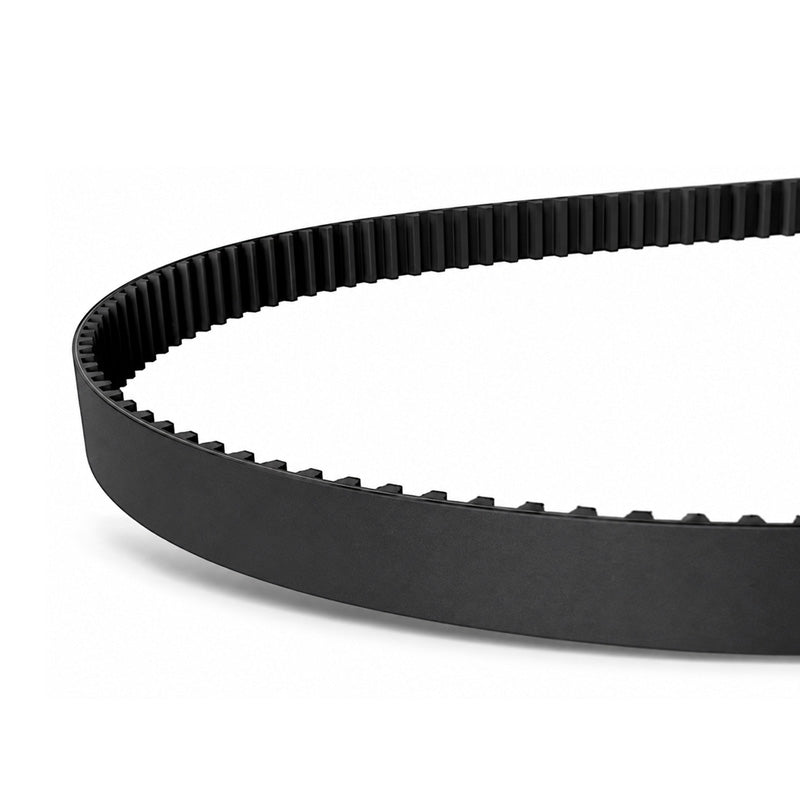

138XL037 Transflex Synchronous Toothed Belt 0.38 inch Wide 13.8 inch Length 69 Teeth
138XL037 Transflex Synchronous Toothed Belt 0.38 inch Wide 13.8 inch Length 69 Teeth
Regular price
$5.45
ex VAT
Regular price
Sale price
$5.45
ex VAT
In stock
Price Break
5+
$3.82
10+
$3.27
20+
$3.00
50+
$2.73
100+
$2.18
500+
$1.91
1000+
$1.64
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Transflex - High Quality
- Belt Width Approx:
- 9.53mm = 3/8 inch
- Belt Depth Approx:
- 2.3mm
- Belt Length Approx:
- 350.52mm = 13.8 inch
- Number of Teeth:
- 69
Technical
Technical
| Belt width | 0.38 inch = 9.53mm |
|---|---|
| Pitch length | 13.8 inch = 350.52mm |
| Number of teeth | 69 |
| Tooth pitch t | 0.2 inch |
| Flank angle f | 50 degrees |
| Tooth height h<sub>t</sub> | 0.05 inch |
| Pitch zone u | 0.01 inch |
