SKU: 140-1-NO12-MB
Branded 140-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Branded 140-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Regular price
$28.37
ex VAT
Regular price
Sale price
$28.37
ex VAT
Equivalent to: 140-1-OL
In stock
Price Break
10+
$25.25
19+
$23.83
29+
$23.55
39+
$23.26
49+
$22.98
74+
$22.70
99+
$21.28
199+
$20.99
249+
$20.71
499+
$20.43
999+
$19.86
Description
Description

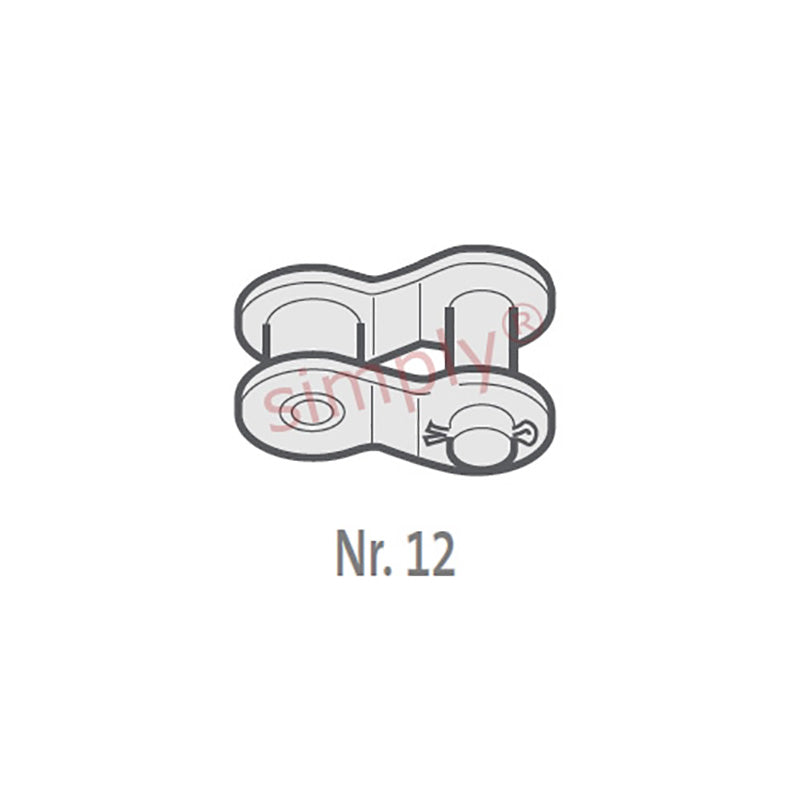

Branded OL / No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 140-1-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42mm |
| Plate Width Inner max (E) | 5.6mm |
| Plate Width Outer max (F) | 5.6mm |
| Pin Diameter max (G) | 12.7mm |
| Pin Length max (H1) | 54.2mm |
| Connecting Link Extension max (J) | 4.8mm |
| ISO606 Tensile Strength min | 170000 N |
| Weight | 0.397kg/m |
