SKU: 140-3-SD-NO12-RENOLD
Renold SD 140-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Renold SD 140-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Regular price
$234.63
ex VAT
Regular price
Sale price
$234.63
ex VAT
In stock
Price Break
10+
$208.82
19+
$197.09
29+
$194.74
39+
$192.40
49+
$190.05
74+
$187.70
99+
$175.97
199+
$173.63
249+
$171.28
499+
$168.93
999+
$164.24
Description
Description

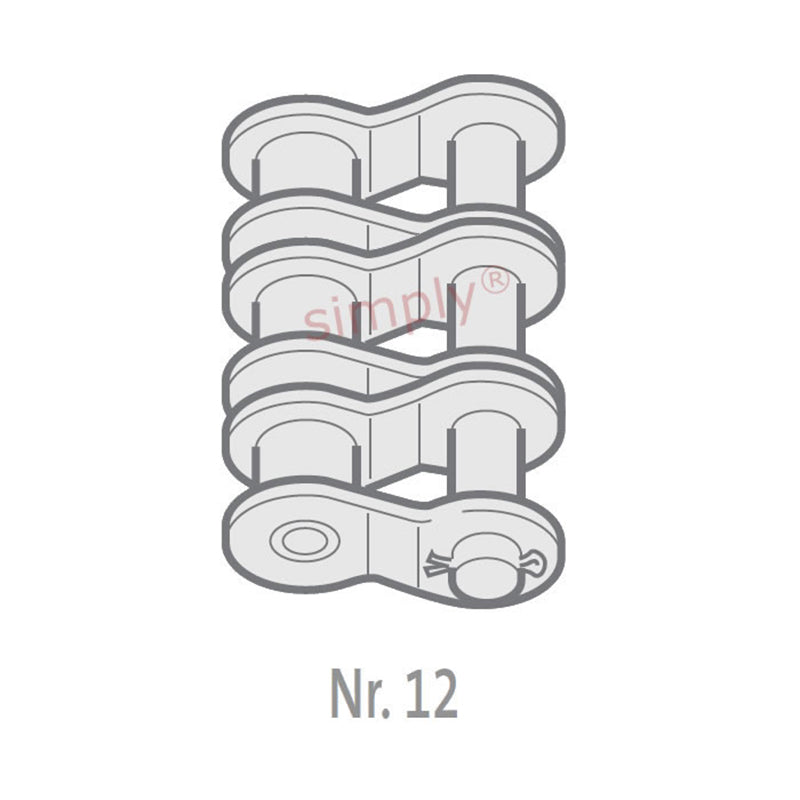

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42mm |
| Plate Width Inner max (E) | 5.6mm |
| Plate Width Outer max (F) | 5.6mm |
| Pin Diameter max (G) | 12.7mm |
| Pin Length max (H1) | 143.4mm |
| Connecting Link Extension max (J) | 14.4mm |
| ISO606 Tensile Strength min | 510000 N |
| Weight | 48.87kg/m |
