SKU: 160-1-NO12-RENOLD
Renold 160-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
Renold 160-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
Regular price
$38.54
ex VAT
Regular price
Sale price
$38.54
ex VAT
In stock
Price Break
10+
$34.30
19+
$32.37
29+
$31.99
39+
$31.60
49+
$31.22
74+
$30.83
99+
$28.91
199+
$28.52
249+
$28.13
499+
$27.75
999+
$26.98
Couldn't load pickup availability
Description
Description

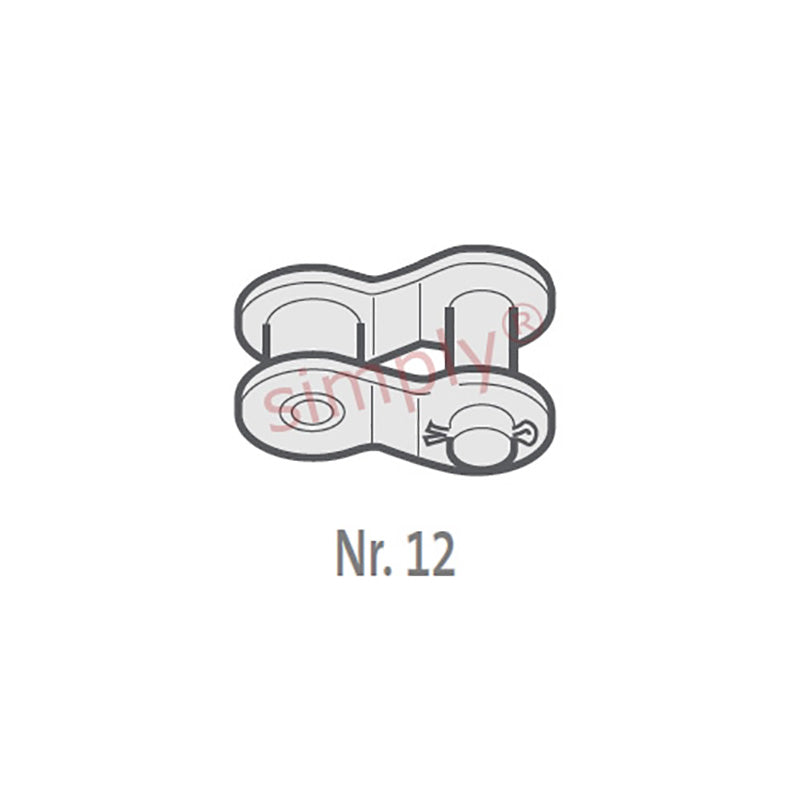

Branded OL / No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.2mm |
| Pin Length max (H1) | 64.3mm |
| Connecting Link Extension max (J) | 5.60000000000001mm |
| ISO606 Tensile Strength min | 223000 N |
| Weight | 0.45kg/m |
