SKU: 160-3-BB-NO12-RENOLD
Renold Blue Box 160-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
Renold Blue Box 160-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
Regular price
$1,239.35
ex VAT
Regular price
Sale price
$1,239.35
ex VAT
In stock
Price Break
10+
$1,103.02
19+
$1,041.05
29+
$1,028.66
39+
$1,016.27
49+
$1,003.87
74+
$991.48
99+
$929.51
199+
$917.12
249+
$904.73
499+
$892.33
999+
$867.55
Description
Description

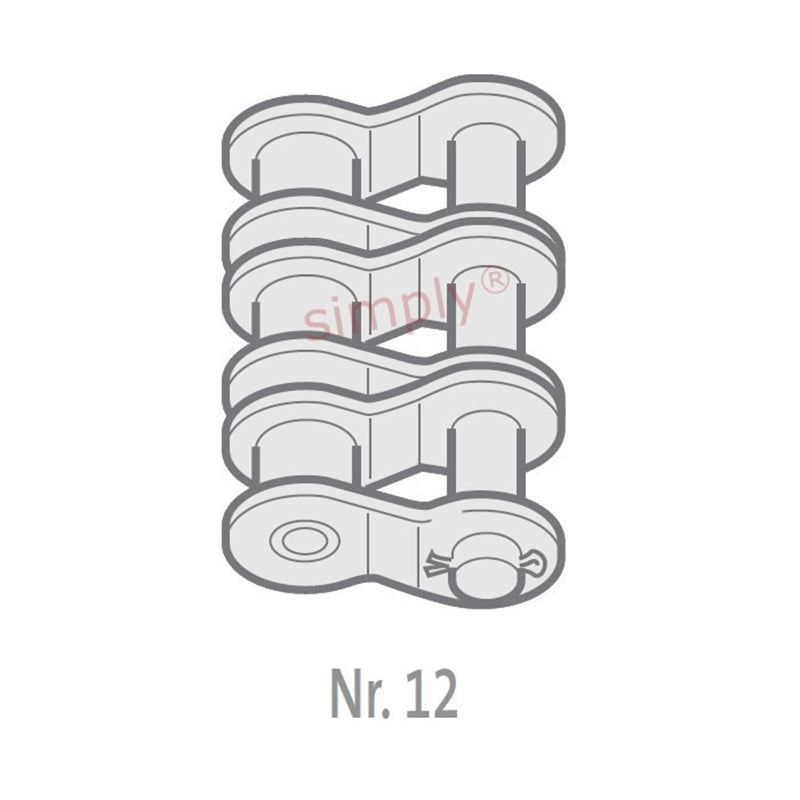

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48.26mm |
| Plate Width Inner max (E) | 6.35mm |
| Plate Width Outer max (F) | 6.35mm |
| Pin Diameter max (G) | 14.29mm |
| Pin Length max (H2) | 180.2mm |
| Connecting Link Extension max (J) | 6.5mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 669000 N |
| Weight | 1.32kg/m |
