SKU: 16008-NTN

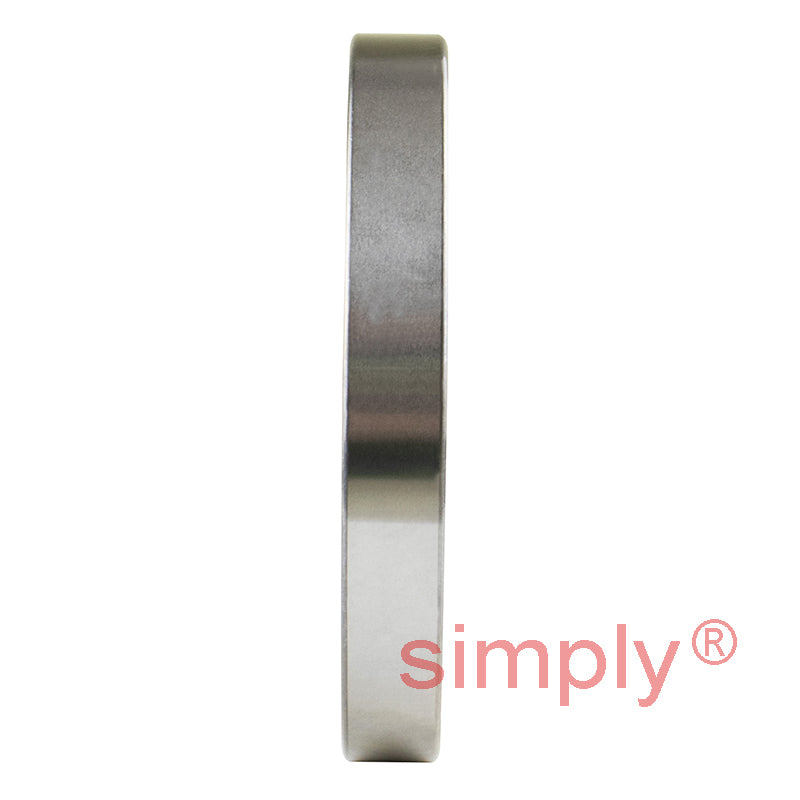

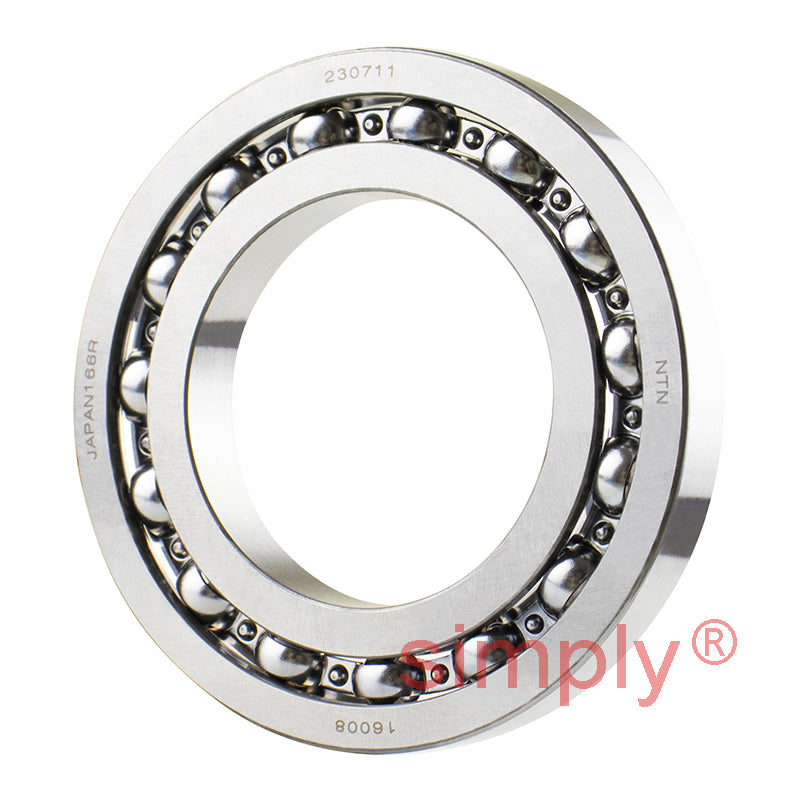

NTN 16008 Open Type Deep Groove Ball Bearing 40x68x9mm
NTN 16008 Open Type Deep Groove Ball Bearing 40x68x9mm
Regular price
$18.13
ex VAT
Regular price
Sale price
$18.13
ex VAT
Equivalent to: 16008CM EL40 ELL40
In stock
Price Break
10+
$16.14
19+
$15.23
29+
$15.05
39+
$14.87
49+
$14.69
74+
$14.50
99+
$13.60
199+
$13.42
249+
$13.23
499+
$13.05
999+
$12.69
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 16008CM EL40 ELL40
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 68mm |
| B | 9mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 14 kN |
| C<sub>or</sub> | 9.65 kN |
| C<sub>u</sub> | 0.685 kN |
| f<sub>0</sub> | 16 kN |
| Grease | 10000 rpm |
| Oil | 12000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 42mm |
| D<sub>a</sub> Max. | 66mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.125 kg |
