SKU: 16013-NTN

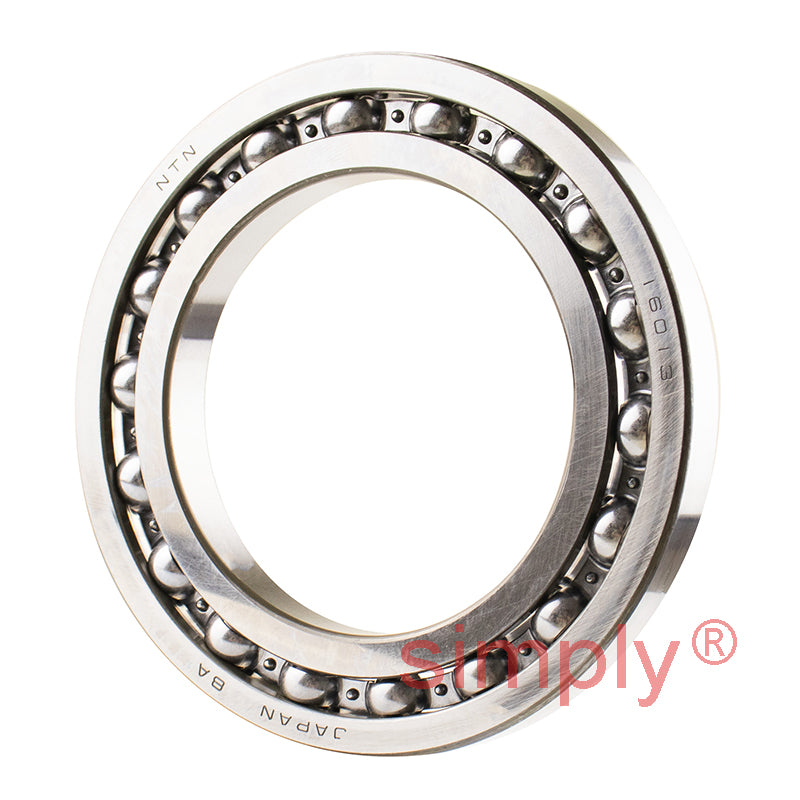

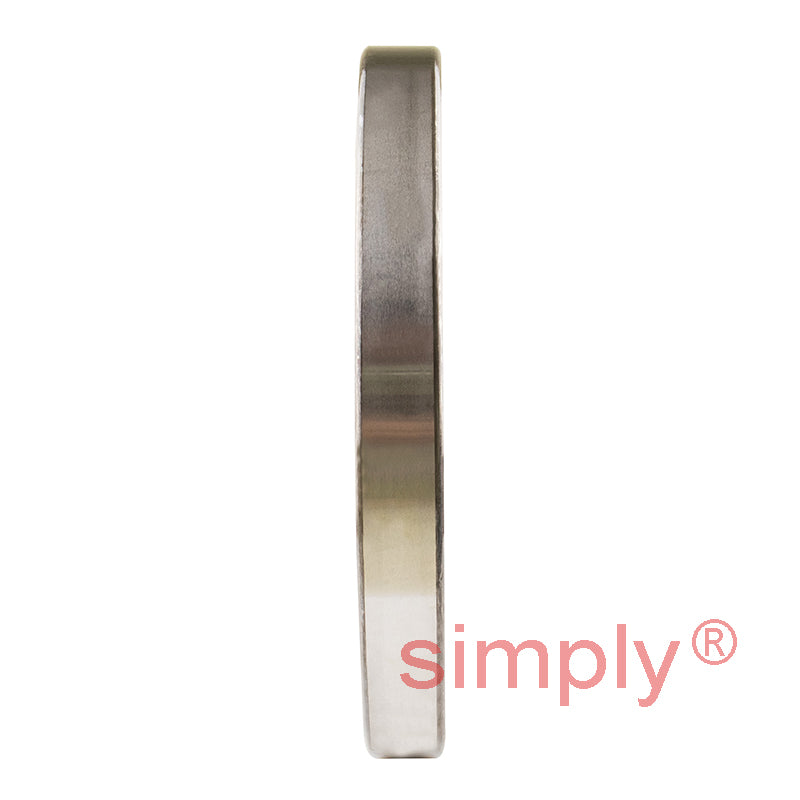

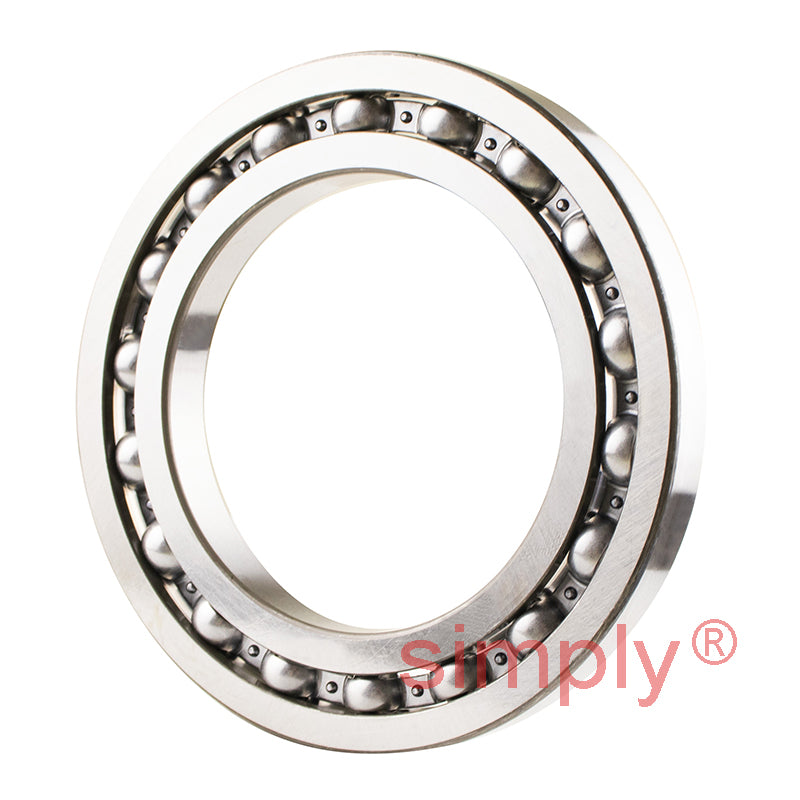

NTN 16013 Open Type Deep Groove Ball Bearing 65x100x11mm
NTN 16013 Open Type Deep Groove Ball Bearing 65x100x11mm
Regular price
$38.49
ex VAT
Regular price
Sale price
$38.49
ex VAT
Equivalent to: 16013CM ELN65 ELLN65
In stock
Price Break
10+
$34.26
19+
$32.33
29+
$31.95
39+
$31.56
49+
$31.18
74+
$30.79
99+
$28.87
199+
$28.48
249+
$28.10
499+
$27.71
999+
$26.94
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 16013CM ELN65 ELLN65
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 100mm |
| B | 11mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 22.7 kN |
| C<sub>or</sub> | 18.7 kN |
| C<sub>u</sub> | 1.26 kN |
| f<sub>0</sub> | 16.5 kN |
| Grease | 6500 rpm |
| Oil | 7700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 69mm |
| D<sub>a</sub> Max. | 96mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.307 kg |
