SKU: 16015-NACHI
NACHI 16015 Open Deep Groove Ball Bearing 75x115x13mm
NACHI 16015 Open Deep Groove Ball Bearing 75x115x13mm
Regular price
$69.70
ex VAT
Regular price
Sale price
$69.70
ex VAT
In stock
Price Break
10+
$62.03
19+
$58.55
29+
$57.85
39+
$57.15
49+
$56.46
74+
$55.76
99+
$52.28
199+
$51.58
249+
$50.88
499+
$50.18
999+
$48.79
Couldn't load pickup availability
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 115mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

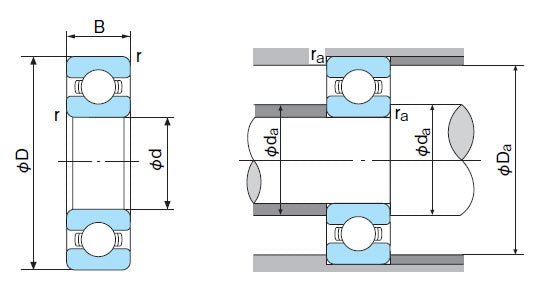

| Inside Diameter d | 75mm |
|---|---|
| Outside Diameter D | 115mm |
| Width B | 13mm |
| Min radius r | 0.6mm |
| Dynamic load | 27600 kN |
| Static load | 25300 kN |
| Max speed in oil | 6700 rpm |
| Max speed in grease | 5700 rpm |
| da min | 82mm |
| Da max | 108mm |
| ra max | 0.6mm |
| Weight | 0.457 kg |
