SKU: 16044C3-NTN

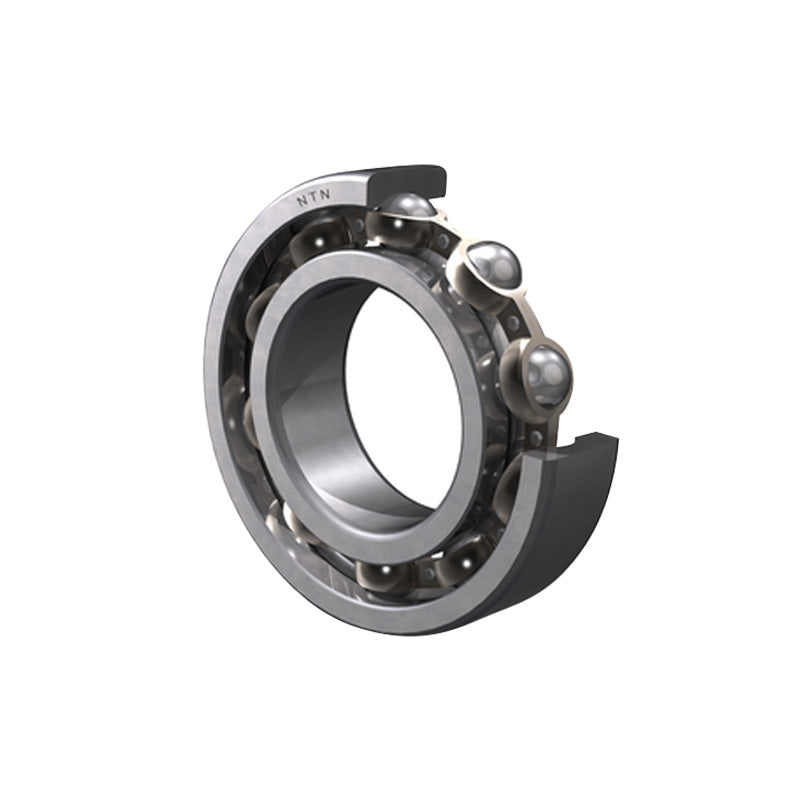

NTN 16044C3 Open Type Deep Groove Ball Bearing 220x340x37mm
NTN 16044C3 Open Type Deep Groove Ball Bearing 220x340x37mm
Regular price
$748.48
ex VAT
Regular price
Sale price
$748.48
ex VAT
In stock
Price Break
10+
$666.15
19+
$628.72
29+
$621.24
39+
$613.75
49+
$606.27
74+
$598.78
99+
$561.36
199+
$553.88
249+
$546.39
499+
$538.91
999+
$523.94
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 340mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 220mm |
| D | 340mm |
| B | 37mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 200 kN |
| C<sub>or</sub> | 216 kN |
| C<sub>u</sub> | 8.65 kN |
| f<sub>0</sub> | 16.5 kN |
| Grease | 1800 rpm |
| Oil | 2200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 231mm |
| D<sub>a</sub> Max. | 329mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 11.3 kg |
