SKU: 16B-1-SD-NO12-RENOLD
Renold SD 16B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1 inch Pitch
Renold SD 16B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
$14.51
ex VAT
Regular price
Sale price
$14.51
ex VAT
In stock
Price Break
10+
$12.91
19+
$12.19
29+
$12.04
39+
$11.90
49+
$11.75
74+
$11.61
99+
$10.88
199+
$10.74
249+
$10.59
499+
$10.45
999+
$10.16
Description
Description

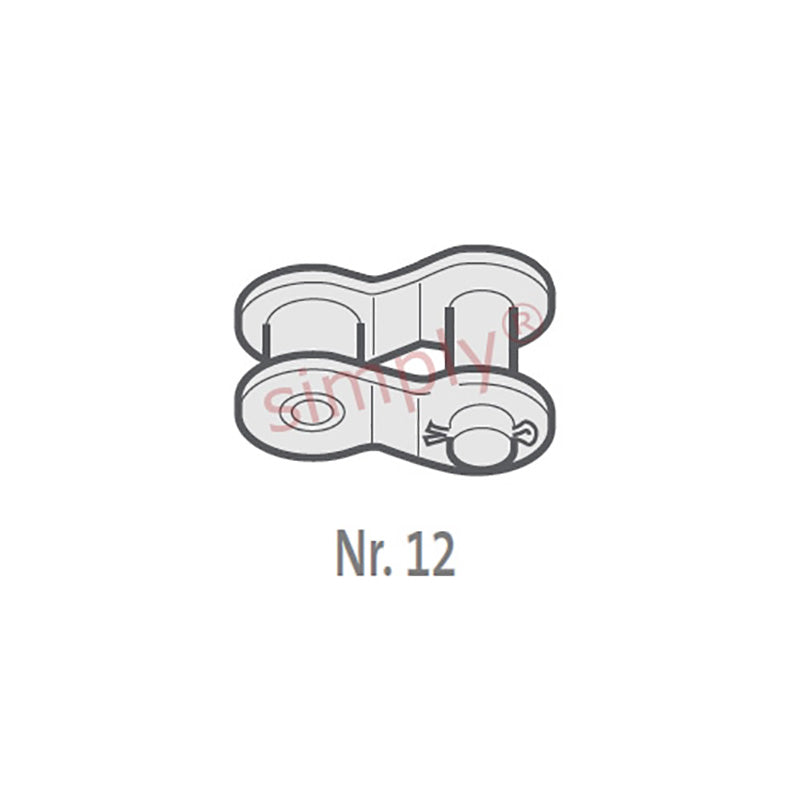

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 36mm |
| Connecting Link Extension max (J) | 1.2mm |
| ISO606 Tensile Strength min | 60000 N |
| Weight | 0.009kg/m |
