SKU: 20207-K-TVP-C3-MB

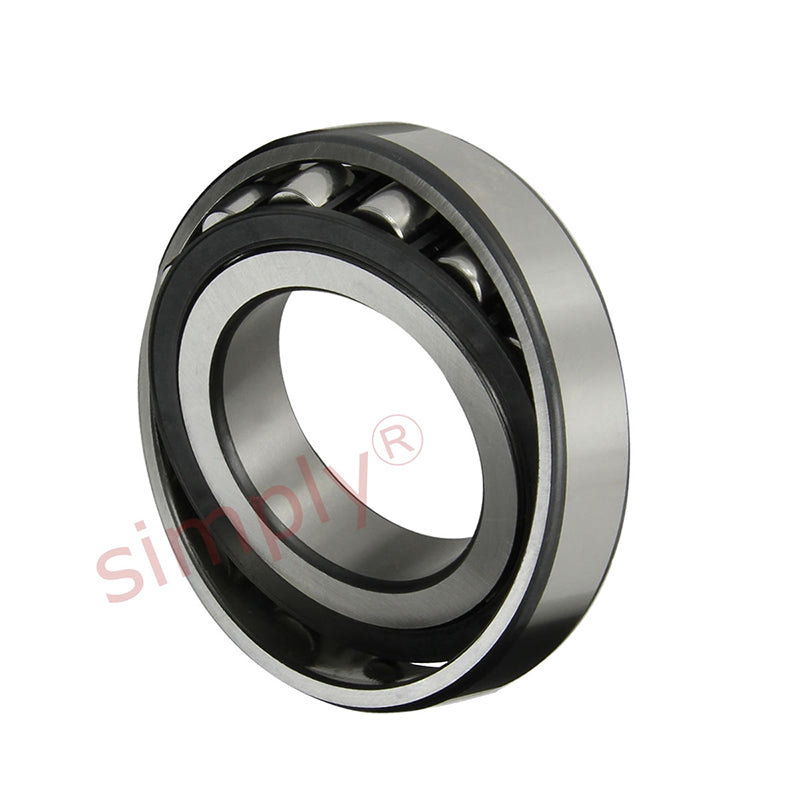

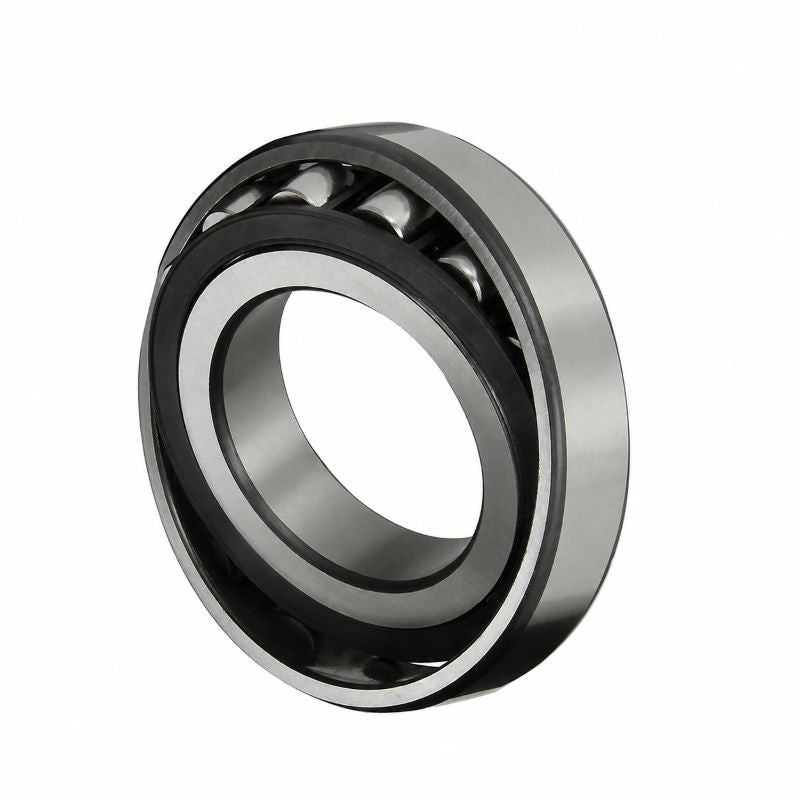

20207KTVPC3 Barrel Roller Bearing with Taper Bore 35x72x17mm - Allow 2-3 Days
20207KTVPC3 Barrel Roller Bearing with Taper Bore 35x72x17mm - Allow 2-3 Days
Regular price
$165.42
ex VAT
Regular price
Sale price
$165.42
ex VAT
In stock
Price Break
10+
$147.22
19+
$138.95
29+
$137.30
39+
$135.64
49+
$133.99
74+
$132.34
99+
$124.07
199+
$122.41
249+
$120.76
499+
$119.10
999+
$115.79
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Clearance:
- C3
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| r min | 1.1mm |
| D1 | 62.3mm |
| da min | 42mm |
| Da max | 65mm |
| ra max | 1mm |
| Dynamic load Cr | 40500 N |
| Static load C0r | 43000 N |
| Fatigue limit load Cur | 4900 N |
| Limiting speed nG | 4800 rpm |
| Weight | 0.296 kg |
