SKU: 20212-K-TVP-C3-MB

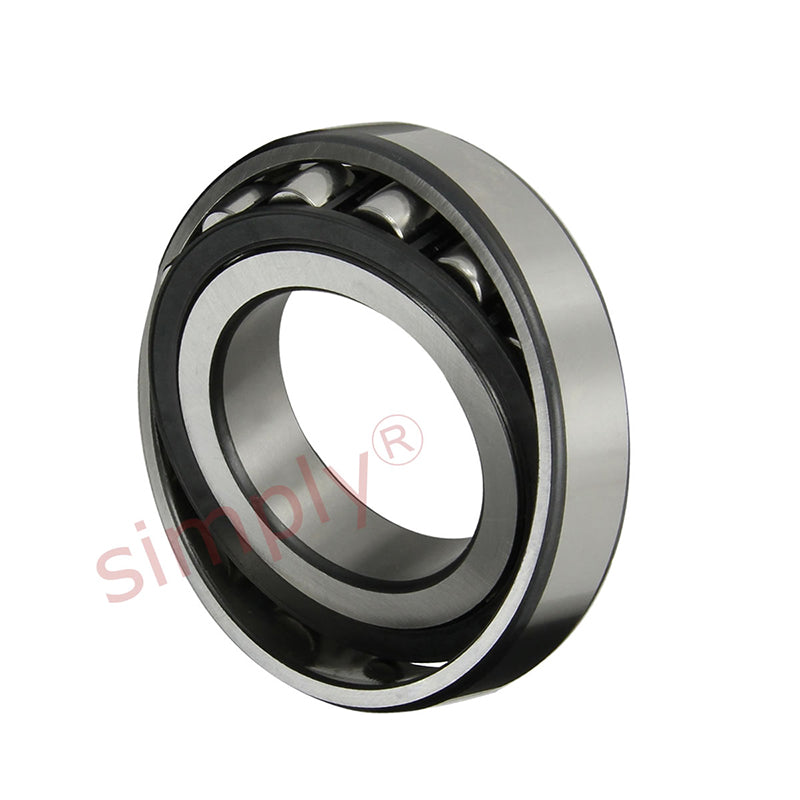

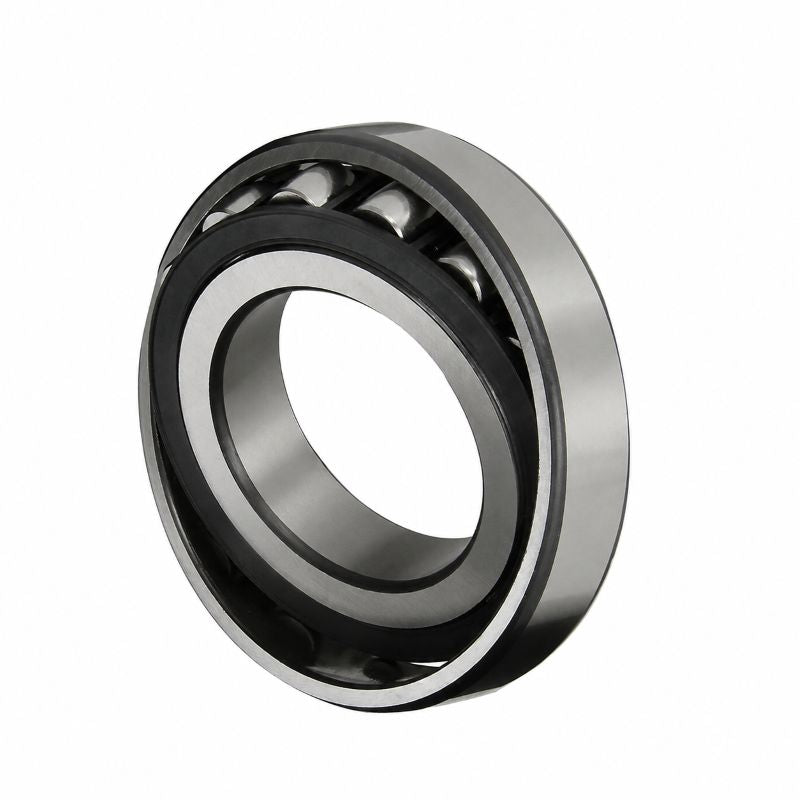

20212KTVPC3 Barrel Roller Bearing with Taper Bore 60x110x22mm - Allow 2-3 Days
20212KTVPC3 Barrel Roller Bearing with Taper Bore 60x110x22mm - Allow 2-3 Days
Regular price
$233.99
ex VAT
Regular price
Sale price
$233.99
ex VAT
In stock
Price Break
10+
$208.25
19+
$196.55
29+
$194.21
39+
$191.87
49+
$189.53
74+
$187.19
99+
$175.49
199+
$173.15
249+
$170.81
499+
$168.47
999+
$163.79
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Clearance:
- C3
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 22mm |
| r min | 1.5mm |
| D1 | 97.8mm |
| da min | 69mm |
| Da max | 101mm |
| ra max | 1.5mm |
| Dynamic load Cr | 85000 N |
| Static load C0r | 100000 N |
| Fatigue limit load Cur | 10600 N |
| Limiting speed nG | 3200 rpm |
| Weight | 0.822 kg |
