SKU: 23064CCK/W33-SKF

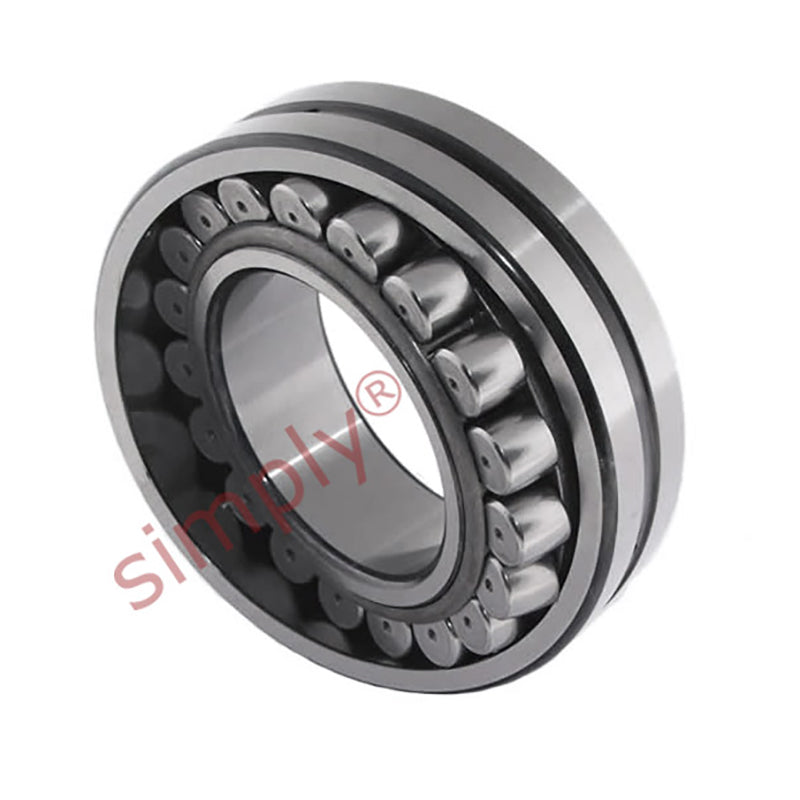

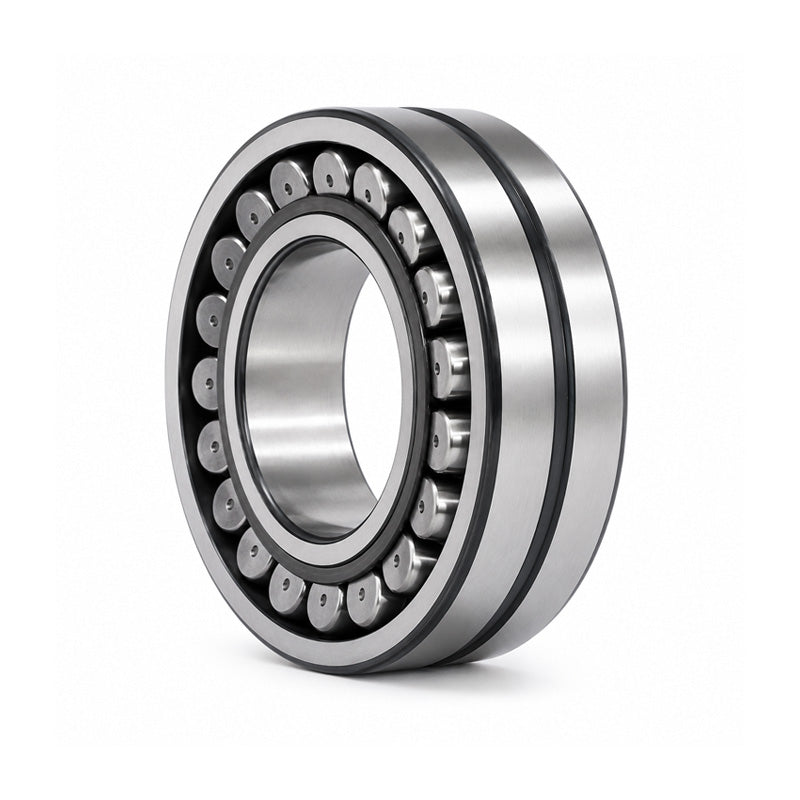

SKF 23064CCKW33 Spherical Roller Bearing with Taper Bore with Steel Cage 320x480x121mm

Name: SKF 23064CCKW33 Spherical Roller Bearing with Taper Bore with Steel Cage 320x480x121mm
Brand: SKF
SKU: 23064CCK/W33-SKF
Price: 5007.11 USD
Availability: InStock

$5,007.11 ex VAT

Sale Sold out

Equivalent to: 23064K

In stock

Price Break

10+ $4,456.33

19+ $4,205.97

29+ $4,155.90

39+ $4,105.83

49+ $4,055.76

74+ $4,005.69

99+ $3,755.33

199+ $3,705.26

249+ $3,655.19

499+ $3,605.12

999+ $3,504.98

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options

Equivalent: 23064K

Brand / Quality:: SKF - High Quality
Inside Diameter:: 320mm
Outside Diameter:: 480mm
Width:: 121mm
Clearance:: * Standard

Technical

---	Dimensions
d	320mm
D	480mm
B	121mm
D1	434mm
d2	360mm
r1r2 min	4mm
b	16.7mm
K	9mm
da min	335mm
Da max	465mm
ra max	3mm
---	Speeds, Loads and Weights
Dynamic load C	2240 kN
Static load Co	3800 kN
Fatigue load limit Pu	285 kN
Reference speed	1100 rpm
Limiting speed	1400 rpm
Weight	78 kg
---	Factors
Calculation factor e	0.23
Calculation factor Y1	2.9
Calculation factor Y2	4.4
Calculation factor Y0	2.8
---	Matching Adaptor Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=OH3064H+sleeve>OH3064H</a>
---	Matching Withdrawal Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AOH3064G+sleeve>AOH3064G</a>
