SKU: 32926-MB

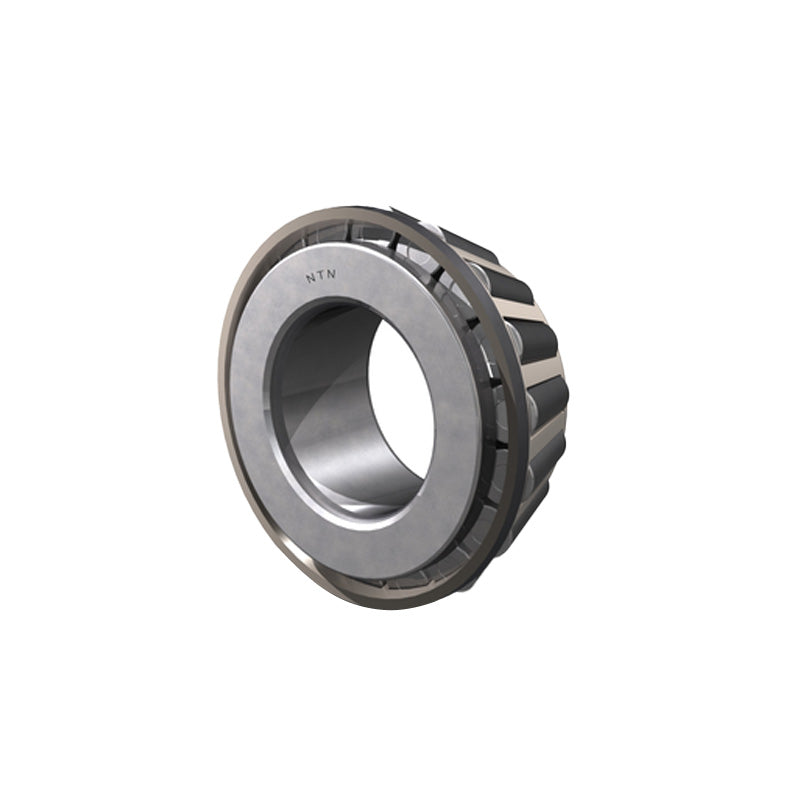

Major Brand 32926 Metric Taper Roller Bearing 130x180x32mm
Major Brand 32926 Metric Taper Roller Bearing 130x180x32mm
Regular price
$311.05
ex VAT
Regular price
Sale price
$311.05
ex VAT
Equivalent to: 32926JR 32926J
In stock
Price Break
10+
$276.83
19+
$261.28
29+
$258.17
39+
$255.06
49+
$251.95
74+
$248.84
99+
$233.29
199+
$230.18
249+
$227.07
499+
$223.96
999+
$217.74
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
Equivalent: 32926JR 32926J
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 180mm
- Width:
- 32mm
- Seals / Shields:
- None
Technical
Technical
| Inner Diameter d | 130mm |
|---|---|
| Outer Diameter D | 180mm |
| Inner Ring width B | 30mm |
| Outer Ring Width C | 26mm |
| Total width T | 32mm |
| Maxium Shaft Link Radius r<sub>as</sub>max | 2mm |
| Maxium Housing Link Radius r<sub>1as</sub>max | 2mm |
| Weight | 2.24kg |
| Dynamic Load Capacity C | 142 kN |
| Static Load capacity C0 | 252 kN |
| Limit Speed with Grease LUB | 1800 rpm |
| Limit Speed with Oil LUB | 2400 rpm |
