SKU: 32B-1-SD-NO12-RENOLD
Renold SD 32B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
Renold SD 32B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
Regular price
$64.91
ex VAT
Regular price
Sale price
$64.91
ex VAT
In stock
Price Break
10+
$57.77
19+
$54.52
29+
$53.88
39+
$53.23
49+
$52.58
74+
$51.93
99+
$48.68
199+
$48.03
249+
$47.38
499+
$46.74
999+
$45.44
Description
Description

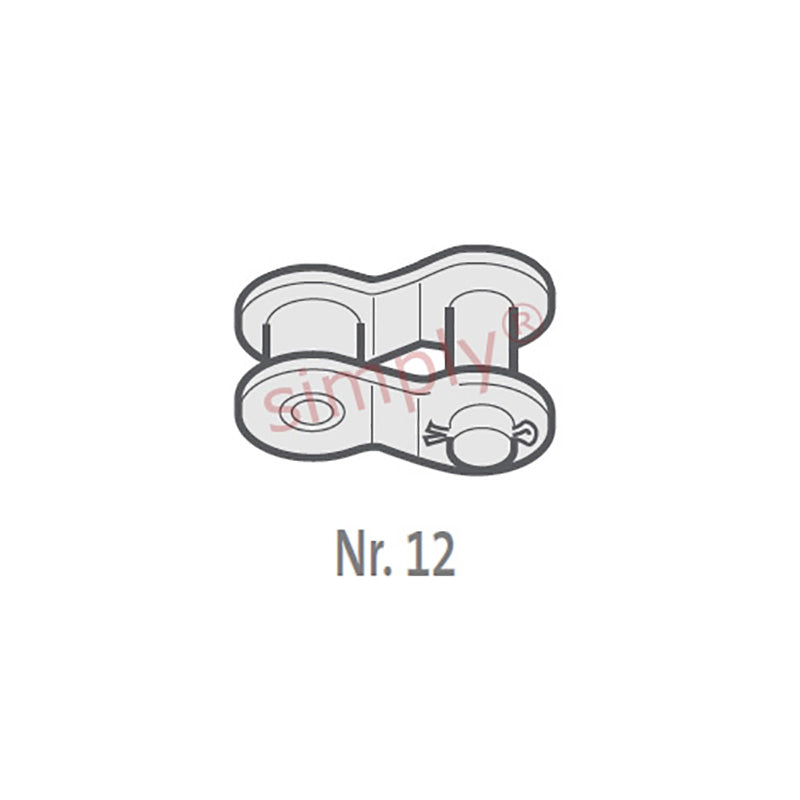

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.1mm |
| Plate Width Inner max (E) | 7.1mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H1) | 66.2mm |
| Connecting Link Extension max (J) | 4.8mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 0.001kg/m |
