SKU: 3308-2RS-EU

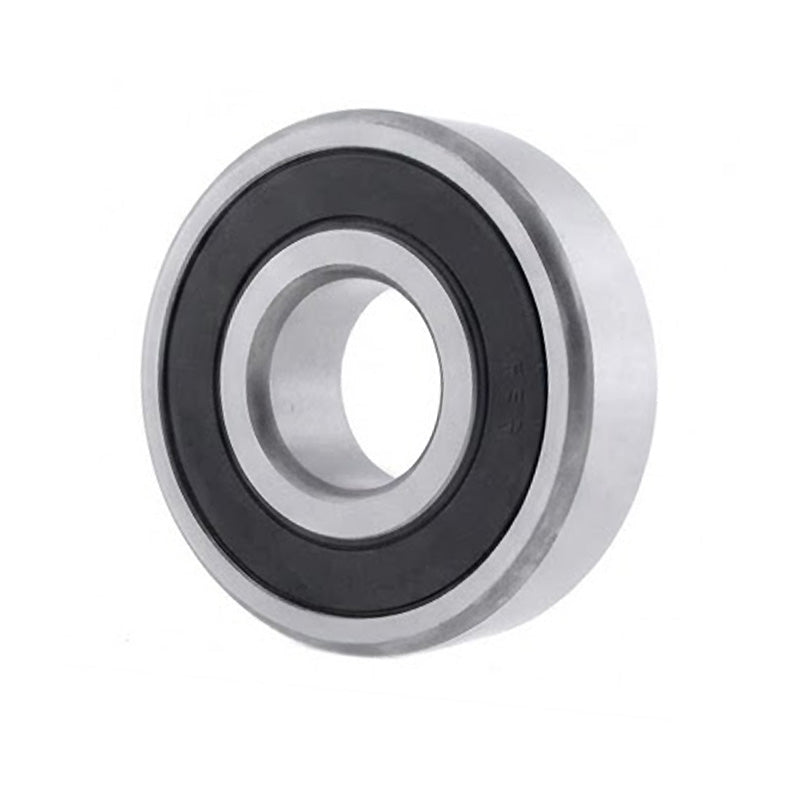

33082RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 40x90x36.5mm
33082RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 40x90x36.5mm
Regular price
$18.83
ex VAT
Regular price
Sale price
$18.83
ex VAT
In stock
Price Break
10+
$16.76
19+
$15.82
29+
$15.63
39+
$15.44
49+
$15.25
74+
$15.06
99+
$14.12
199+
$13.93
249+
$13.75
499+
$13.56
999+
$13.18
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 36.5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 36.5mm |
| Dynamic load C | 64 kN |
| Static load Co | 44 kN |
| Fatigue load limit Pu | 1.86 kN |
| Reference speed | 5000 rpm |
| Weight | 0.93 kg |
| d1 | 50.8mm |
| D1 | 80.5mm |
| r1r2 min | 1.5mm |
| a | 53mm |
| da min | 49mm |
| da max | 50.5mm |
| Da max | 81mm |
| ra max | 1.5mm |
