Renold SD 35-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/8 inch Pitch
Renold SD 35-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/8 inch Pitch
Regular price
$8.40
ex VAT
Regular price
Sale price
$8.40
ex VAT
In stock
Price Break
10+
$7.48
19+
$7.06
29+
$6.97
39+
$6.89
49+
$6.80
74+
$6.72
99+
$6.30
199+
$6.22
249+
$6.13
499+
$6.05
999+
$5.88
Description
Description

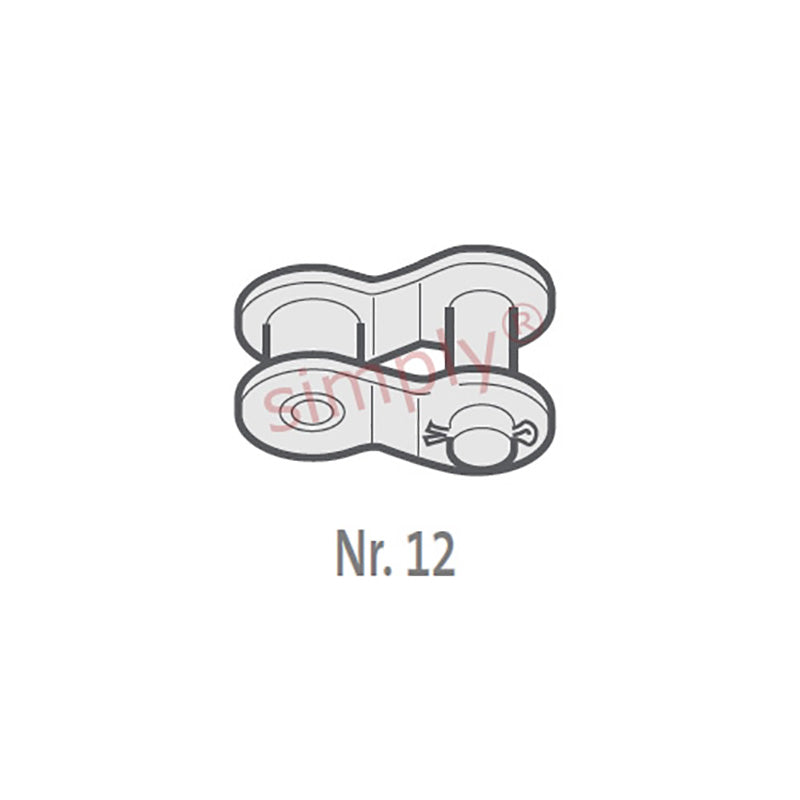

| Renold No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 4.77mm |
| Roller Diameter max (C) | 5.08mm |
| Plate Height max (D) | 8.95mm |
| Plate Width Inner max (E) | 1.2mm |
| Plate Width Outer max (F) | 1.2mm |
| Pin Diameter max (G) | 3.58mm |
| Pin Length max (H1) | 12.15mm |
| Connecting Link Extension max (J) | 0.949999999999999mm |
| ISO606 Tensile Strength min | 7900 N |
| Weight | 0.008kg/m |
