SKU: 40-2-NO26-MB
Branded 40-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Branded 40-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
$5.19
ex VAT
Regular price
Sale price
$5.19
ex VAT
Equivalent to: 40-2-CL
In stock
Price Break
10+
$4.62
19+
$4.36
29+
$4.31
39+
$4.26
49+
$4.20
74+
$4.15
99+
$3.89
199+
$3.84
249+
$3.79
499+
$3.74
999+
$3.63
Description
Description

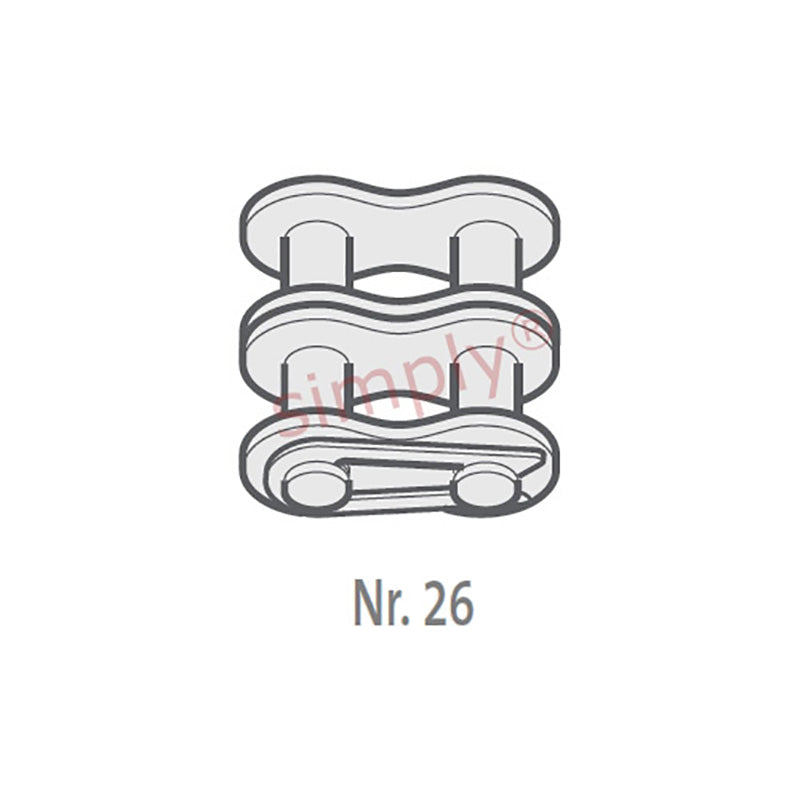

Branded CL / No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 40-2-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.95mm |
| Plate Height max (D) | 11.9mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H2) | 31.1mm |
| Connecting Link Extension max (J) | 1.15mm |
| Transverse Pitch nom (K) | 14.38mm |
| ISO606 Tensile Strength min | 27800 N |
| Weight | 0.02kg/m |
