SKU: 4T-32008X-NTN

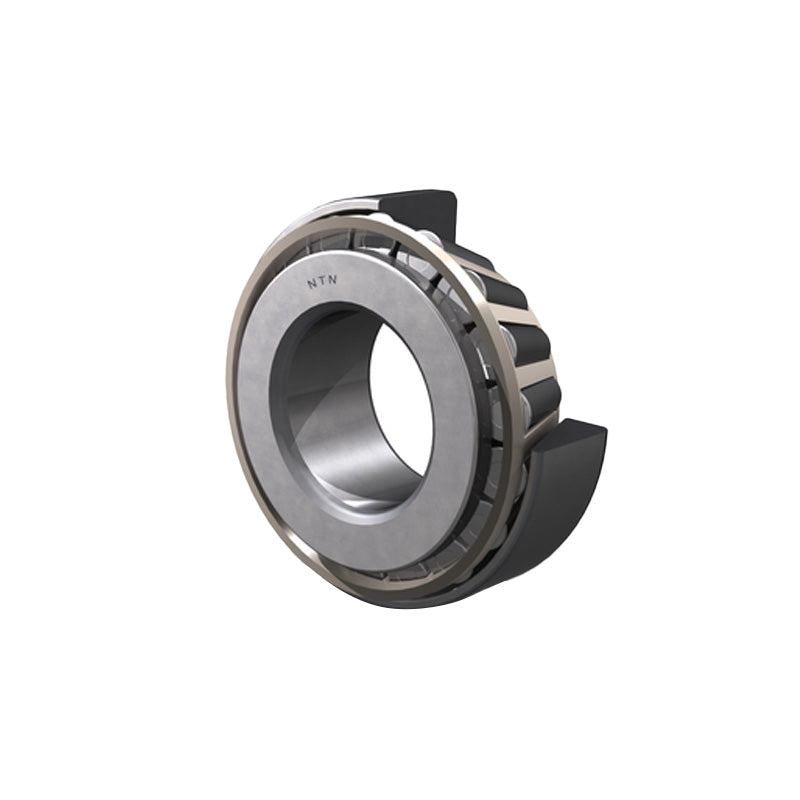

NTN 4T-32008X Tapered Roller Bearing Cup and Cone Set 40x68x19mm
NTN 4T-32008X Tapered Roller Bearing Cup and Cone Set 40x68x19mm
Regular price
$30.60
ex VAT
Regular price
Sale price
$30.60
ex VAT
In stock
Price Break
10+
$27.23
19+
$25.70
29+
$25.40
39+
$25.09
49+
$24.79
74+
$24.48
99+
$22.95
199+
$22.64
249+
$22.34
499+
$22.03
999+
$21.42
Description
Description
NTN Metric Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads.
Supplied as a two-part set consisting of the cone inner part where the rollers and cage are located (fits on the shaft) and the outer cup part (fits in the housing).
NTN Europe is a world-renowned leader in the bearing manufacturing sector and their tapered roller bearings are no exception.
Manufactured to exacting standards you can be assured of the quality of NTN products.
Benefits: NTN quality assured, Socially and environmentally responsible manufacturer.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 19mm
- Style:
- Taper Roller Bearing
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 68mm |
| T | 19mm |
| B | 19mm |
| C | 14.5mm |
| r<sub>s</sub> min | 1mm |
| r<sub>ls</sub> min | 1mm |
| --- | Speeds and loads |
| Dynamic load C<sub>r</sub> | 55.5kN |
| Static load C<sub>or</sub> | 65.5kN |
| Allowable Speed in grease | 5300rpm |
| Allowable Speed in oil | 7100rpm |
| --- | Abutment dimensions |
| ISO Dimension series | 3CD |
| d<sub>a</sub> min | 45.5mm |
| d<sub>b</sub> max | 45.5mm |
| D<sub>a</sub> max | 62.5mm |
| D<sub>a</sub> min | 58mm |
| D<sub>b</sub> min | 65mm |
| S<sub>a</sub> min | 4mm |
| S<sub>b</sub> min | 4.5mm |
| r<sub>as</sub> max | 1mm |
| r<sub>1as</sub> max | 1mm |
| Load center a | 15mm |
| Constant e | 0.38mm |
| Y<sub>2</sub> | 1.58mm |
| Y<sub>0</sub> | 0.87mm |
| Weight | 0.272kg |
