SKU: 51172F-SKF

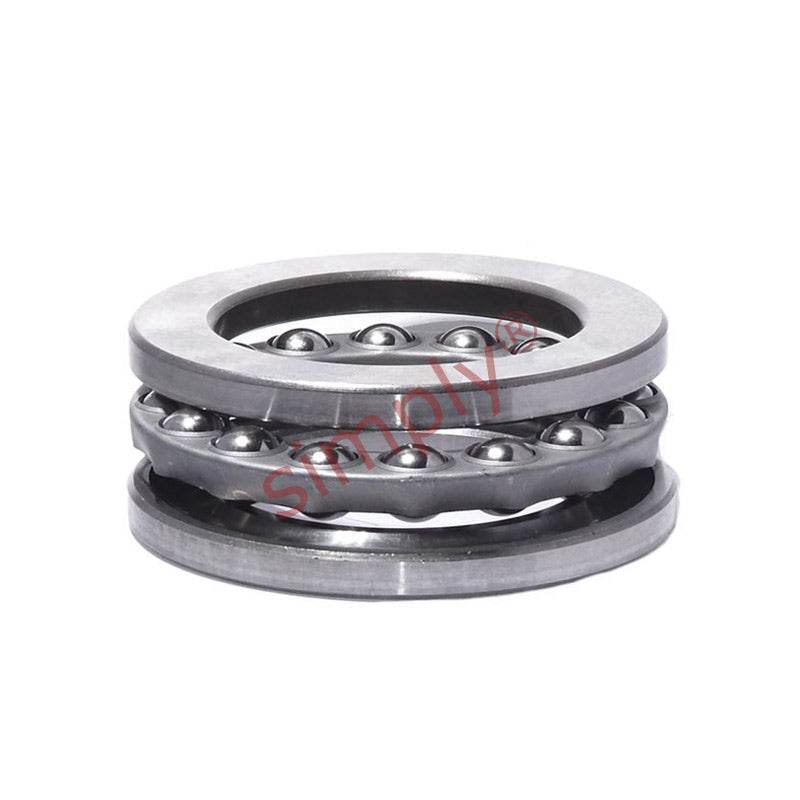

SKF 51172F Single Thrust Ball Bearing 360x440x65mm
SKF 51172F Single Thrust Ball Bearing 360x440x65mm
Regular price
$6,241.73
ex VAT
Regular price
Sale price
$6,241.73
ex VAT
In stock
Price Break
10+
$5,555.14
19+
$5,243.05
29+
$5,180.64
39+
$5,118.22
49+
$5,055.80
74+
$4,993.38
99+
$4,681.30
199+
$4,618.88
249+
$4,556.46
499+
$4,494.05
999+
$4,369.21
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 360mm
- Outside Diameter:
- 440mm
- Width:
- 65mm
Technical
Technical
| d | 360mm |
|---|---|
| D | 440mm |
| H | 65mm |
| Dynamic load C | 390 kN |
| Static load Co | 2080 kN |
| Fatigue load limit Pu | 38 kN |
| Minimum load factor A | 22 |
| Reference speed | 750 rpm |
| Limiting speed | 1100 rpm |
| Weight | 22 kg |
| d1 | 436mm |
| D1 | 364mm |
| r1r2 min | 2mm |
| da min | 408mm |
| Da max | 392mm |
| ra max | 2mm |
