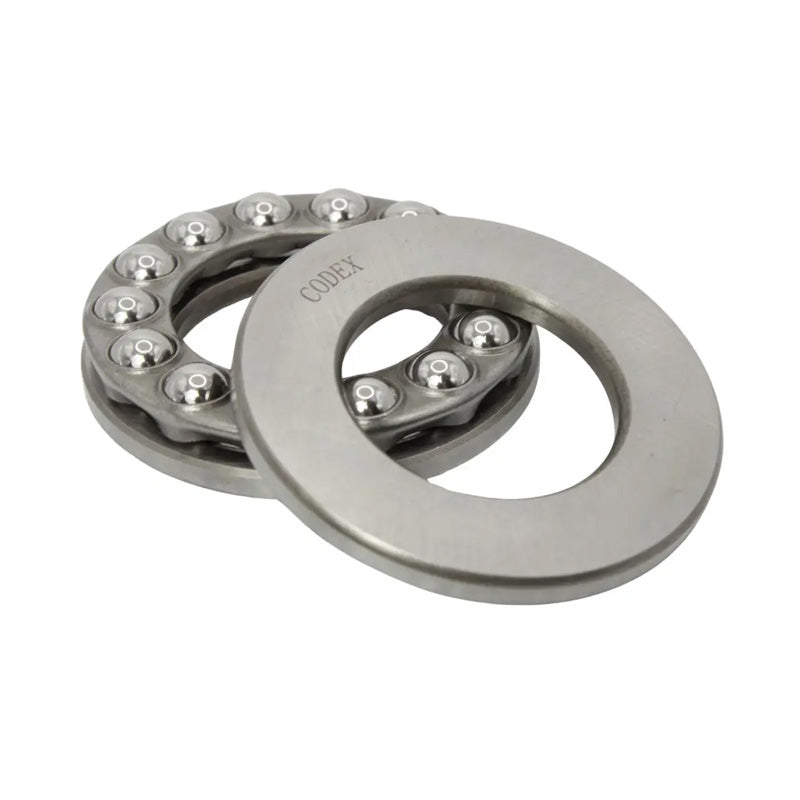

Codex 51200 Single Thrust Ball Bearing 10x26x11mm
Codex 51200 Single Thrust Ball Bearing 10x26x11mm
Regular price
$16.97
ex VAT
Regular price
Sale price
$16.97
ex VAT
In stock
Price Break
10+
$15.10
19+
$14.25
29+
$14.09
39+
$13.92
49+
$13.75
74+
$13.58
99+
$12.73
199+
$12.56
249+
$12.39
499+
$12.22
999+
$11.88
Couldn't load pickup availability
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Width:
- 11mm
Technical
Technical
| d | 10 |
|---|---|
| D | 26 |
| H | 11 |
| Dynamic Load | 12.7 kN |
| Static Load | 18.6 kN |
| Pu | 0.7 |
| A | 0.0018 |
| Ref Speed | 8000 rpm |
| Limiting Speed | 11000 rpm |
| kg | 0.03 |
| d1 | 26 |
| D1 | 12 |
| r1r2 min | 0.6 |
| da min | 20 |
| Da max | 16 |
| ra max | 0.6 |
