SKU: 51201-CDX

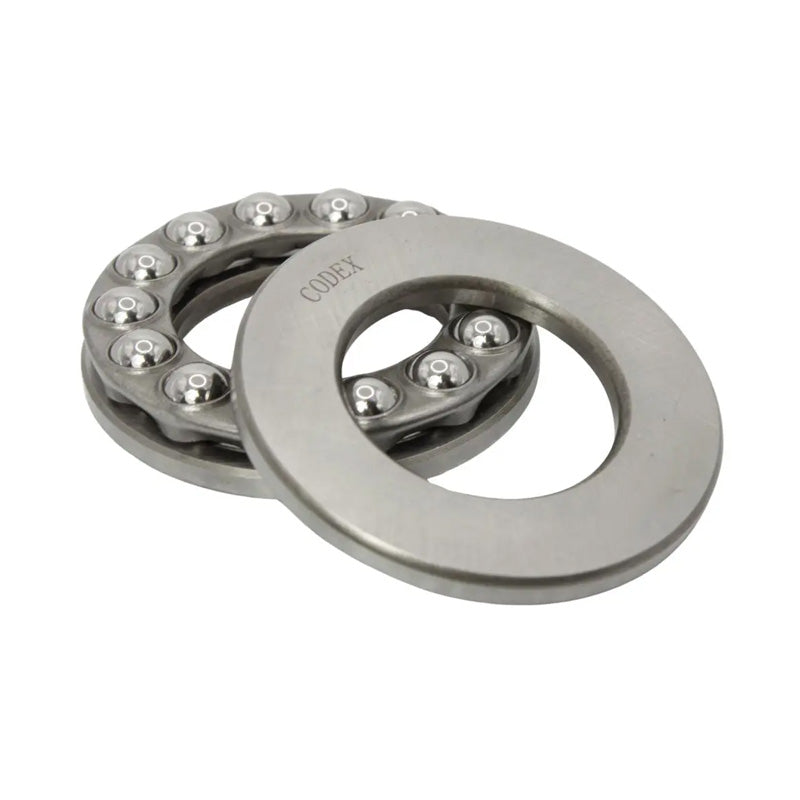

Codex 51201 Single Thrust Ball Bearing 12x28x11mm
Codex 51201 Single Thrust Ball Bearing 12x28x11mm
Regular price
$17.35
ex VAT
Regular price
Sale price
$17.35
ex VAT
In stock
Price Break
10+
$15.44
19+
$14.57
29+
$14.40
39+
$14.23
49+
$14.05
74+
$13.88
99+
$13.01
199+
$12.84
249+
$12.67
499+
$12.49
999+
$12.15
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 11mm
Technical
Technical
| d | 12 |
|---|---|
| D | 28 |
| H | 11 |
| Dynamic Load | 13.3 kN |
| Static Load | 20.8 kN |
| Pu | 0.77 |
| A | 0.0022 |
| Ref Speed | 8000 rpm |
| Limiting Speed | 11000 rpm |
| kg | 0.034 |
| d1 | 28 |
| D1 | 14 |
| r1r2 min | 0.6 |
| da min | 22 |
| Da max | 18 |
| ra max | 0.6 |
