SKU: 51207-CDX
Codex 51207 Single Thrust Ball Bearing 35x62x18mm
Codex 51207 Single Thrust Ball Bearing 35x62x18mm
Regular price
$28.87
ex VAT
Regular price
Sale price
$28.87
ex VAT
In stock
Price Break
10+
$25.69
19+
$24.25
29+
$23.96
39+
$23.67
49+
$23.38
74+
$23.10
99+
$21.65
199+
$21.36
249+
$21.08
499+
$20.79
999+
$20.21
Description
Description

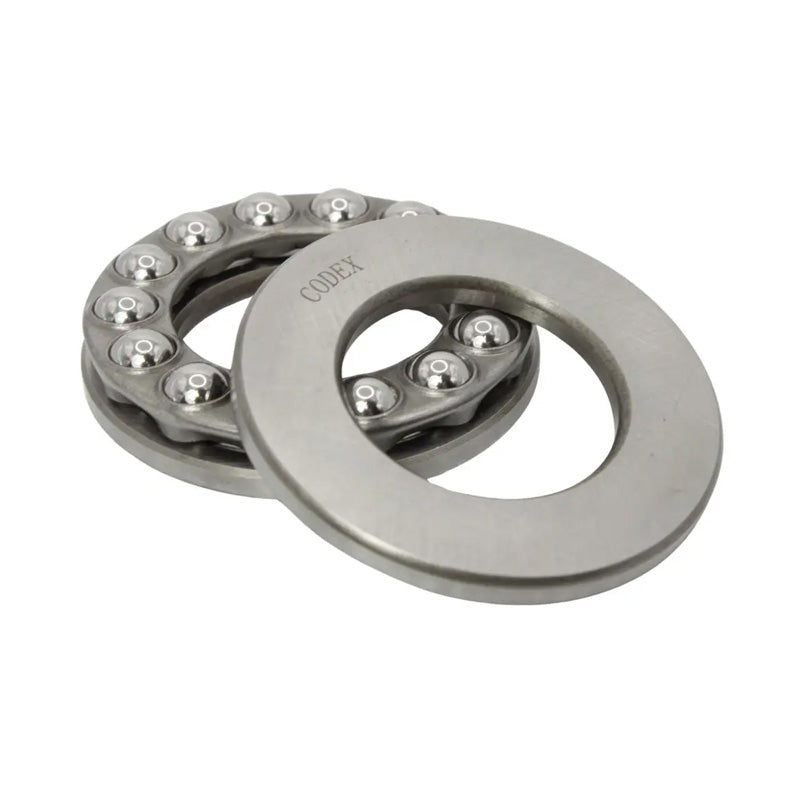

Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 18mm
Technical
Technical
| d | 35 |
|---|---|
| D | 62 |
| H | 18 |
| Dynamic Load | 35.1 kN |
| Static Load | 73.5 kN |
| Pu | 2.7 |
| A | 0.028 |
| Ref Speed | 4000 rpm |
| Limiting Speed | 5600 rpm |
| kg | 0.22 |
| d1 | 62 |
| D1 | 37 |
| r1r2 min | 1 |
| da min | 51 |
| Da max | 46 |
| ra max | 1 |
