SKU: 51208-CDX

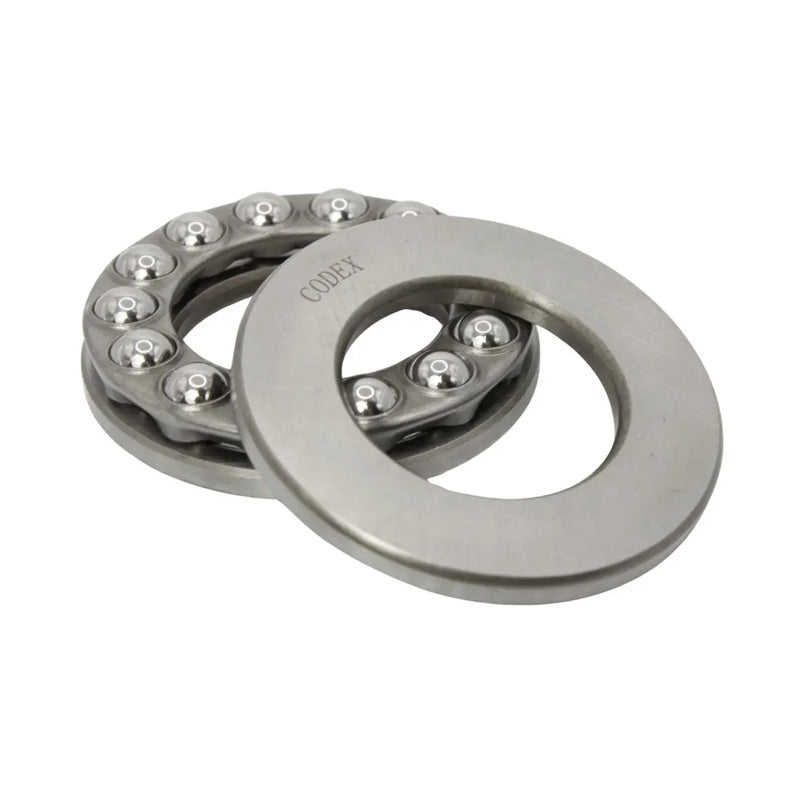

Codex 51208 Single Thrust Ball Bearing 40x68x19mm
Codex 51208 Single Thrust Ball Bearing 40x68x19mm
Regular price
$32.41
ex VAT
Regular price
Sale price
$32.41
ex VAT
In stock
Price Break
10+
$28.84
19+
$27.22
29+
$26.90
39+
$26.58
49+
$26.25
74+
$25.93
99+
$24.31
199+
$23.98
249+
$23.66
499+
$23.34
999+
$22.69
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 19mm
Technical
Technical
| d | 40 |
|---|---|
| D | 68 |
| H | 19 |
| Dynamic Load | 46.8 kN |
| Static Load | 106 kN |
| Pu | 4 |
| A | 0.058 |
| Ref Speed | 3800 rpm |
| Limiting Speed | 5300 rpm |
| kg | 0.28 |
| d1 | 68 |
| D1 | 42 |
| r1r2 min | 1 |
| da min | 57 |
| Da max | 51 |
| ra max | 1 |
