SKU: 51209-CDX

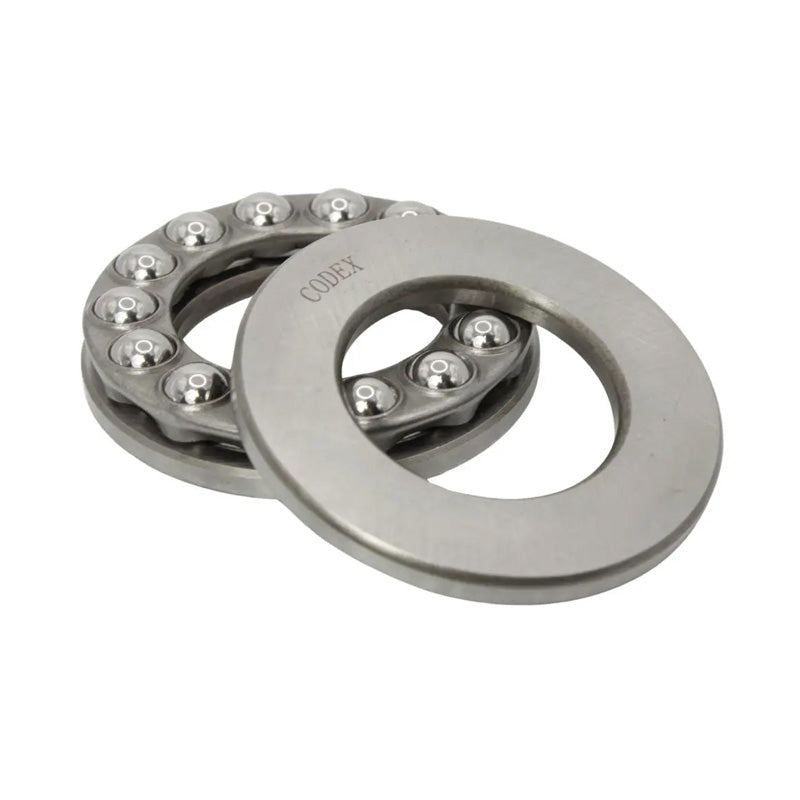

Codex 51209 Single Thrust Ball Bearing 45x73x20mm
Codex 51209 Single Thrust Ball Bearing 45x73x20mm
Regular price
$35.51
ex VAT
Regular price
Sale price
$35.51
ex VAT
In stock
Price Break
10+
$31.60
19+
$29.83
29+
$29.47
39+
$29.12
49+
$28.76
74+
$28.41
99+
$26.63
199+
$26.28
249+
$25.92
499+
$25.57
999+
$24.86
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 73mm
- Width:
- 20mm
Technical
Technical
| d | 45 |
|---|---|
| D | 73 |
| H | 20 |
| Dynamic Load | 39 kN |
| Static Load | 86.5 kN |
| Pu | 3.2 |
| A | 0.038 |
| Ref Speed | 3600 rpm |
| Limiting Speed | 5000 rpm |
| kg | 0.3 |
| d1 | 73 |
| D1 | 47 |
| r1r2 min | 1 |
| da min | 62 |
| Da max | 56 |
| ra max | 1 |
