SKU: 51212-CDX

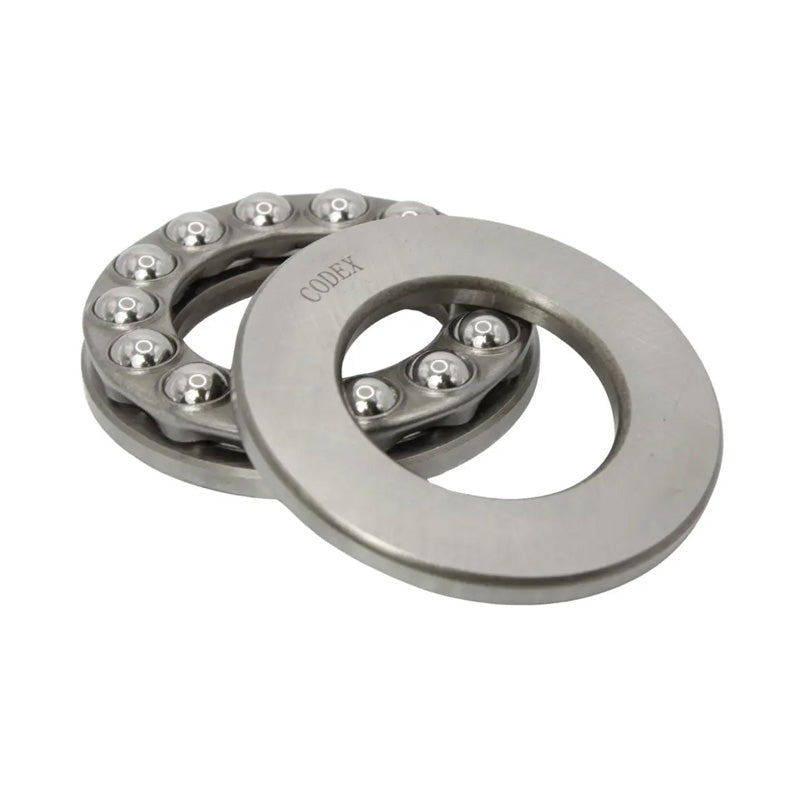

Codex 51212 Single Thrust Ball Bearing 60x95x26mm
Codex 51212 Single Thrust Ball Bearing 60x95x26mm
Regular price
$59.54
ex VAT
Regular price
Sale price
$59.54
ex VAT
In stock
Price Break
10+
$52.99
19+
$50.01
29+
$49.42
39+
$48.82
49+
$48.23
74+
$47.63
99+
$44.66
199+
$44.06
249+
$43.46
499+
$42.87
999+
$41.68
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 26mm
Technical
Technical
| d | 60 |
|---|---|
| D | 95 |
| H | 26 |
| Dynamic Load | 62.4 kN |
| Static Load | 150 kN |
| Pu | 5.6 |
| A | 0.12 |
| Ref Speed | 2800 rpm |
| Limiting Speed | 3800 rpm |
| kg | 0.65 |
| d1 | 95 |
| D1 | 62 |
| r1r2 min | 1 |
| da min | 81 |
| Da max | 74 |
| ra max | 1 |
