SKU: 51213-CDX

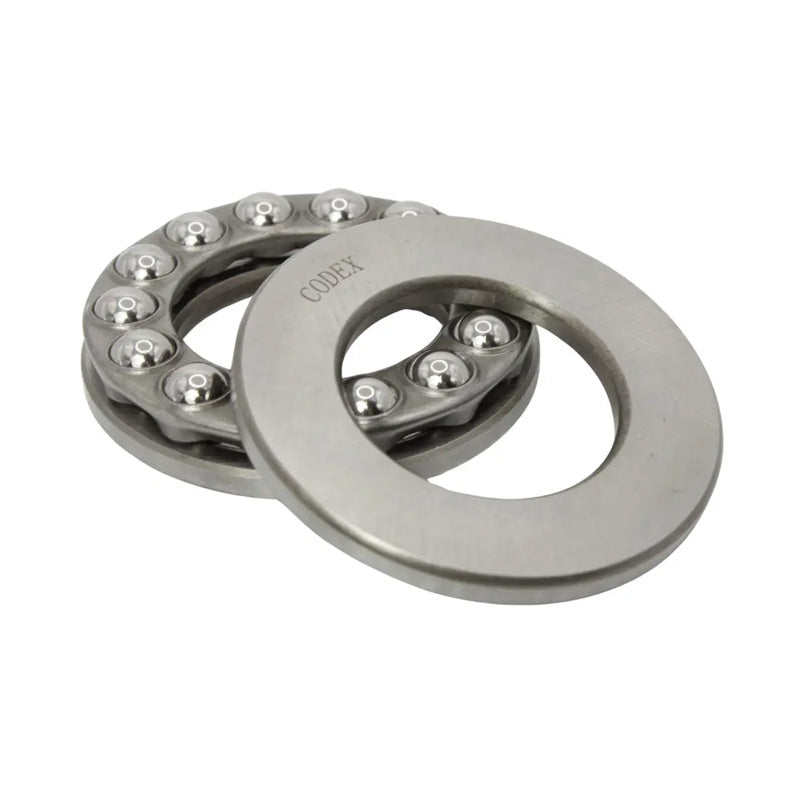

Codex 51213 Single Thrust Ball Bearing 65x100x27mm
Codex 51213 Single Thrust Ball Bearing 65x100x27mm
Regular price
$68.21
ex VAT
Regular price
Sale price
$68.21
ex VAT
In stock
Price Break
10+
$60.71
19+
$57.30
29+
$56.61
39+
$55.93
49+
$55.25
74+
$54.57
99+
$51.16
199+
$50.48
249+
$49.79
499+
$49.11
999+
$47.75
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 27mm
Technical
Technical
| d | 65 |
|---|---|
| D | 100 |
| H | 27 |
| Dynamic Load | 63.7 kN |
| Static Load | 163 kN |
| Pu | 6 |
| A | 0.14 |
| Ref Speed | 2600 rpm |
| Limiting Speed | 3600 rpm |
| kg | 0.78 |
| d1 | 100 |
| D1 | 67 |
| r1r2 min | 1 |
| da min | 86 |
| Da max | 79 |
| ra max | 1 |
