SKU: 51213-SKF

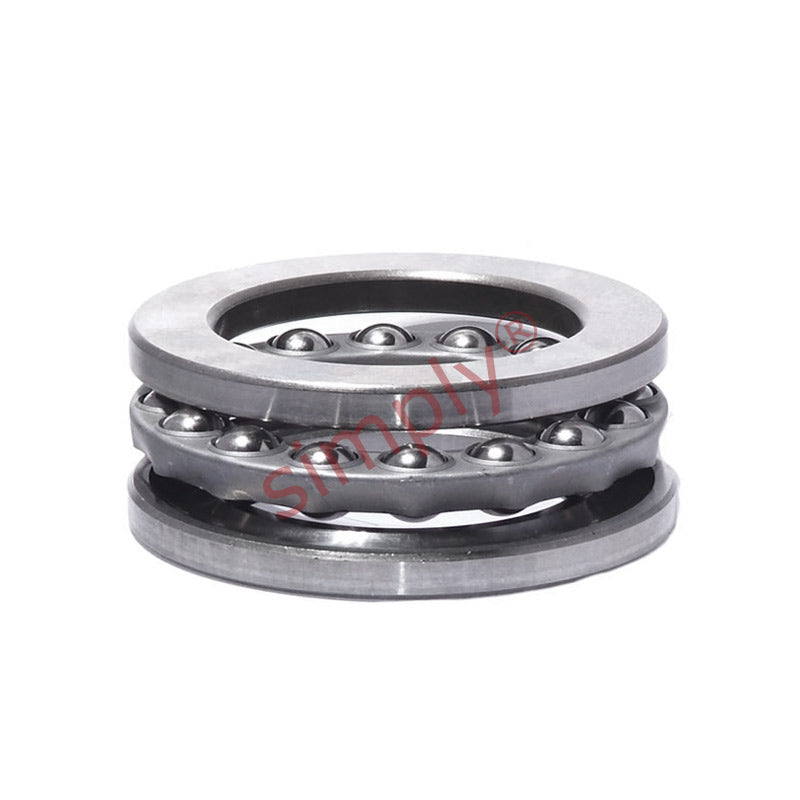

SKF 51213 Single Thrust Ball Bearing 65x100x27mm
SKF 51213 Single Thrust Ball Bearing 65x100x27mm
Regular price
$94.35
ex VAT
Regular price
Sale price
$94.35
ex VAT
In stock
Price Break
10+
$83.97
19+
$79.25
29+
$78.31
39+
$77.37
49+
$76.42
74+
$75.48
99+
$70.76
199+
$69.82
249+
$68.88
499+
$67.93
999+
$66.05
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 27mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 100mm |
| H | 27mm |
| Dynamic load C | 63.7 kN |
| Static load Co | 163 kN |
| Fatigue load limit Pu | 6 kN |
| Minimum load factor A | 0.14 |
| Reference speed | 2600 rpm |
| Limiting speed | 3600 rpm |
| Weight | 0.735 kg |
| d1 | 100mm |
| D1 | 67mm |
| r1r2 min | 1mm |
| da min | 86mm |
| Da max | 79mm |
| ra max | 1mm |
