SKU: 51217-SKF

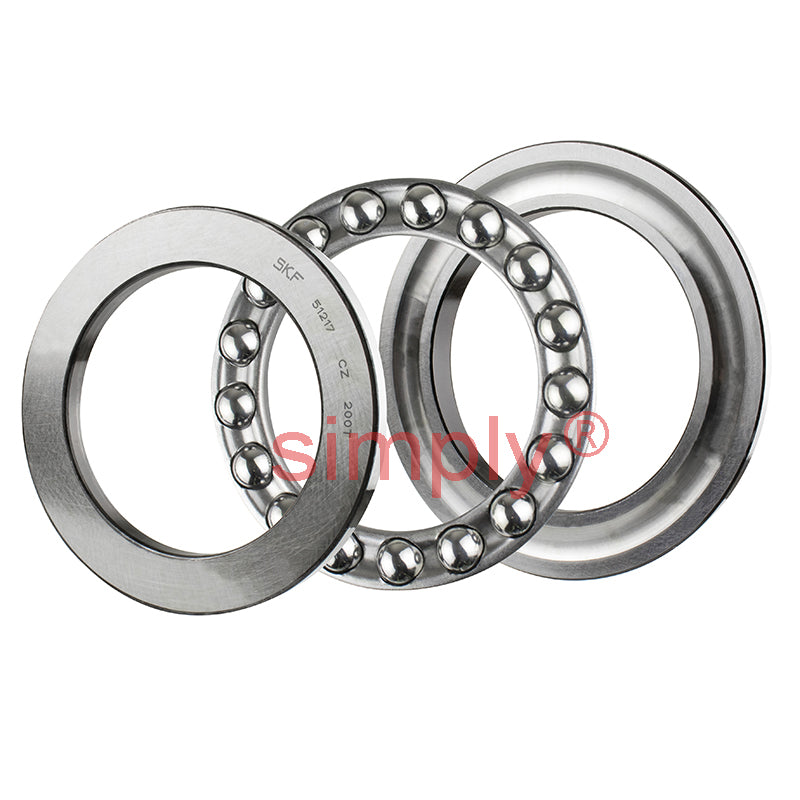

SKF 51217 Single Thrust Ball Bearing 85x125x31mm
SKF 51217 Single Thrust Ball Bearing 85x125x31mm
Regular price
$139.97
ex VAT
Regular price
Sale price
$139.97
ex VAT
In stock
Price Break
10+
$124.57
19+
$117.57
29+
$116.18
39+
$114.78
49+
$113.38
74+
$111.98
99+
$104.98
199+
$103.58
249+
$102.18
499+
$100.78
999+
$97.98
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 125mm
- Width:
- 31mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 125mm |
| H | 31mm |
| Dynamic load C | 97.5 kN |
| Static load Co | 275 kN |
| Fatigue load limit Pu | 9.8 kN |
| Minimum load factor A | 0.39 |
| Reference speed | 2200 rpm |
| Limiting speed | 3000 rpm |
| Weight | 1.2 kg |
| d1 | 125mm |
| D1 | 88mm |
| r1r2 min | 1mm |
| da min | 109mm |
| Da max | 101mm |
| ra max | 1mm |
