SKU: 51252M-SKF

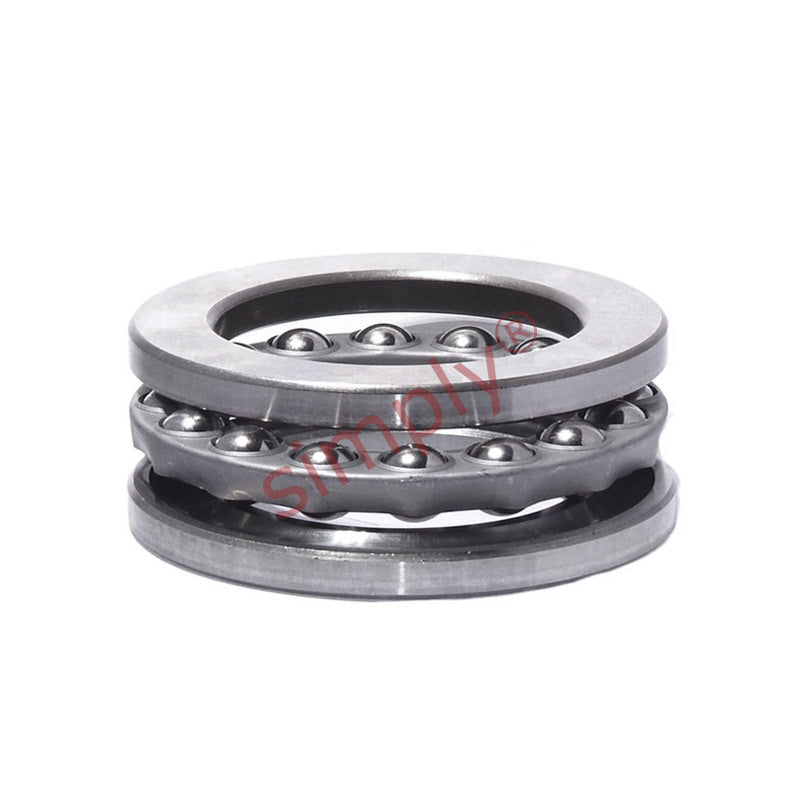

SKF 51252M Single Thrust Ball Bearing 260x360x79mm
SKF 51252M Single Thrust Ball Bearing 260x360x79mm
Regular price
$4,829.92
ex VAT
Regular price
Sale price
$4,829.92
ex VAT
In stock
Price Break
10+
$4,298.63
19+
$4,057.13
29+
$4,008.83
39+
$3,960.53
49+
$3,912.24
74+
$3,863.94
99+
$3,622.44
199+
$3,574.14
249+
$3,525.84
499+
$3,477.54
999+
$3,380.94
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 260mm
- Outside Diameter:
- 360mm
- Width:
- 79mm
Technical
Technical
| d | 260mm |
|---|---|
| D | 360mm |
| H | 79mm |
| Dynamic load C | 475 kN |
| Static load Co | 2160 kN |
| Fatigue load limit Pu | 45.5 kN |
| Minimum load factor A | 24 |
| Reference speed | 750 rpm |
| Limiting speed | 1100 rpm |
| Weight | 25 kg |
| d1 | 355mm |
| D1 | 264mm |
| r1r2 min | 2.1mm |
| da min | 319mm |
| Da max | 301mm |
| ra max | 2mm |
