SKU: 51410-SKF

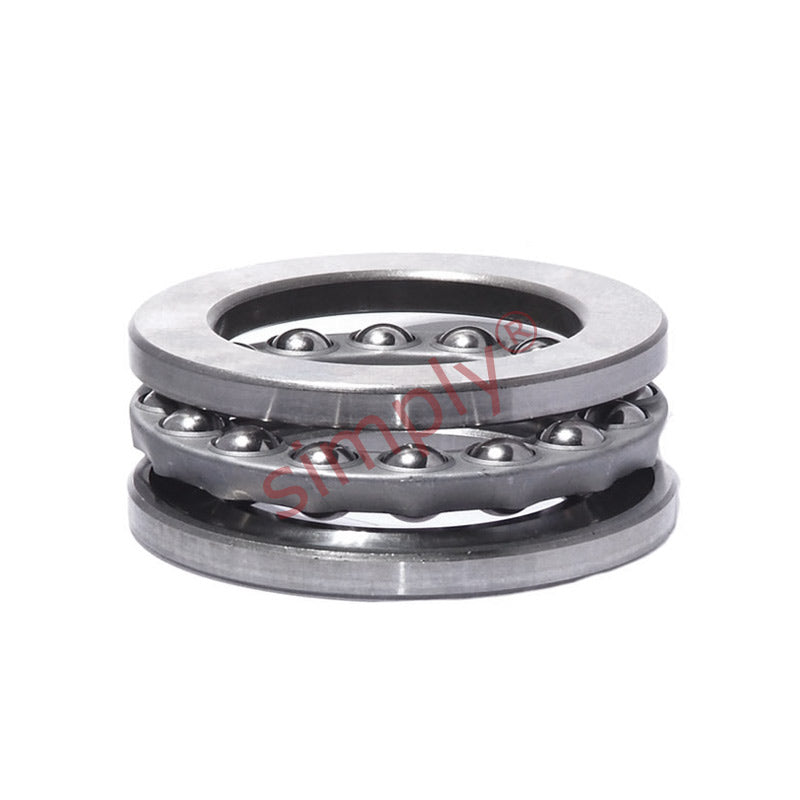

SKF 51410 Single Thrust Ball Bearing 50x110x43mm
SKF 51410 Single Thrust Ball Bearing 50x110x43mm
Regular price
$209.17
ex VAT
Regular price
Sale price
$209.17
ex VAT
In stock
Price Break
10+
$186.16
19+
$175.70
29+
$173.61
39+
$171.52
49+
$169.43
74+
$167.34
99+
$156.88
199+
$154.79
249+
$152.69
499+
$150.60
999+
$146.42
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 43mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| H | 43mm |
| Dynamic load C | 159 kN |
| Static load Co | 340 kN |
| Fatigue load limit Pu | 12.5 kN |
| Minimum load factor A | 0.6 |
| Reference speed | 2000 rpm |
| Limiting speed | 2800 rpm |
| Weight | 2 kg |
| d1 | 110mm |
| D1 | 52mm |
| r1r2 min | 1.5mm |
| da min | 86mm |
| Da max | 74mm |
| ra max | 1.5mm |
