SKU: 51411-SKF

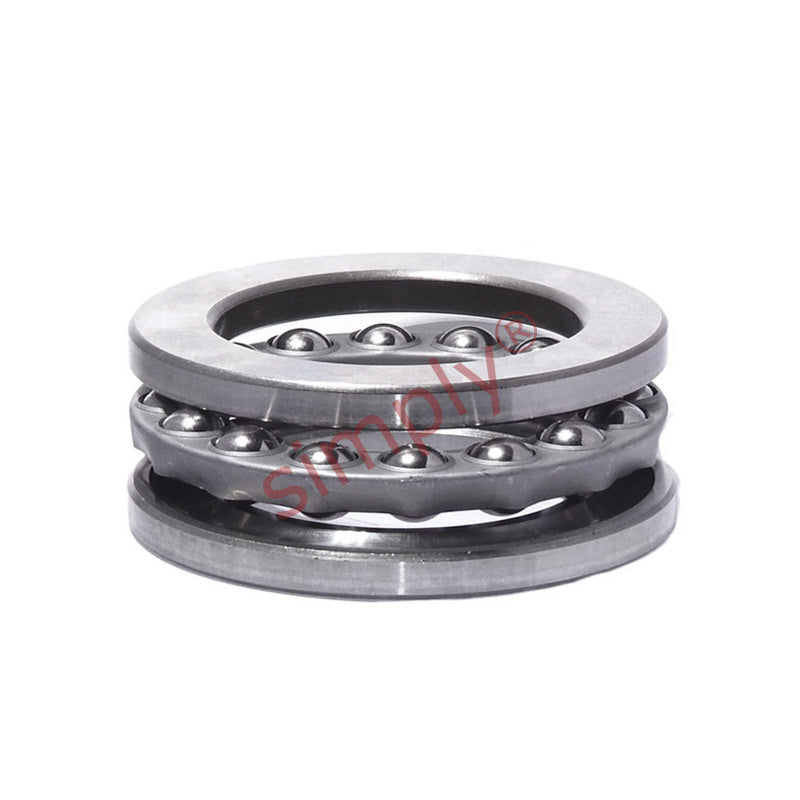

SKF 51411 Single Thrust Ball Bearing 55x120x48mm
SKF 51411 Single Thrust Ball Bearing 55x120x48mm
Regular price
$464.35
ex VAT
Regular price
Sale price
$464.35
ex VAT
In stock
Price Break
10+
$413.27
19+
$390.05
29+
$385.41
39+
$380.77
49+
$376.12
74+
$371.48
99+
$348.26
199+
$343.62
249+
$338.98
499+
$334.33
999+
$325.05
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 48mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| H | 48mm |
| Dynamic load C | 178 kN |
| Static load Co | 390 kN |
| Fatigue load limit Pu | 14.3 kN |
| Minimum load factor A | 0.79 |
| Reference speed | 1800 rpm |
| Limiting speed | 2400 rpm |
| Weight | 2.55 kg |
| d1 | 120mm |
| D1 | 57mm |
| r1r2 min | 1.5mm |
| da min | 94mm |
| Da max | 81mm |
| ra max | 1.5mm |
