SKU: 51420M-SKF

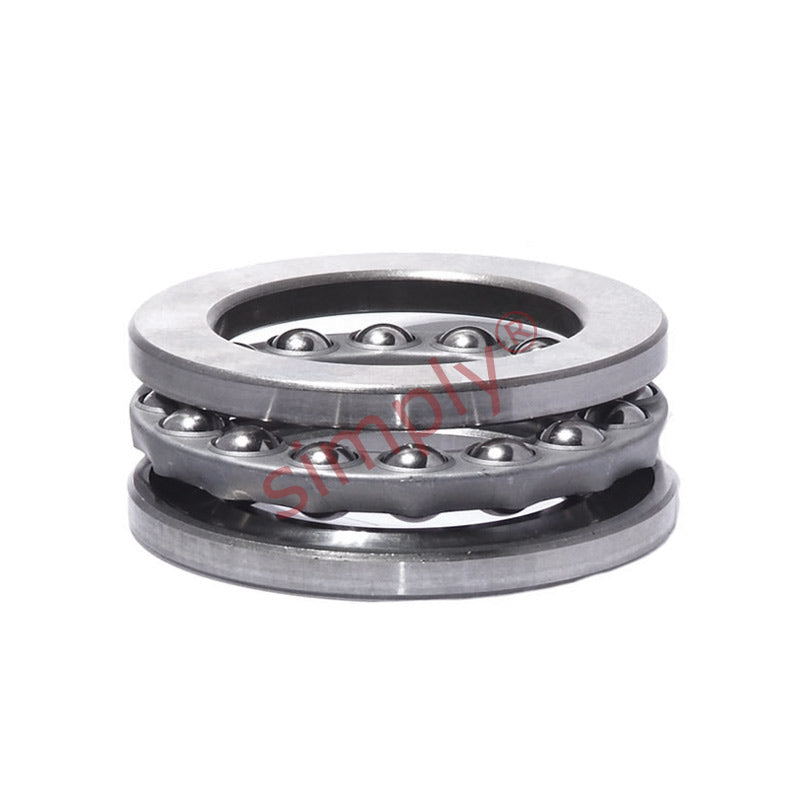

SKF 51420M Single Thrust Ball Bearing 100x210x85mm
SKF 51420M Single Thrust Ball Bearing 100x210x85mm
Regular price
$3,456.10
ex VAT
Regular price
Sale price
$3,456.10
ex VAT
In stock
Price Break
10+
$3,075.93
19+
$2,903.12
29+
$2,868.56
39+
$2,834.00
49+
$2,799.44
74+
$2,764.88
99+
$2,592.08
199+
$2,557.51
249+
$2,522.95
499+
$2,488.39
999+
$2,419.27
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 210mm
- Width:
- 85mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 210mm |
| H | 85mm |
| Dynamic load C | 371 kN |
| Static load Co | 1060 kN |
| Fatigue load limit Pu | 31.5 kN |
| Minimum load factor A | 5.8 |
| Reference speed | 950 rpm |
| Limiting speed | 1400 rpm |
| Weight | 15 kg |
| d1 | 205mm |
| D1 | 103mm |
| r1r2 min | 3mm |
| da min | 165mm |
| Da max | 145mm |
| ra max | 2.5mm |
