SKU: 5212-2RS-KSM

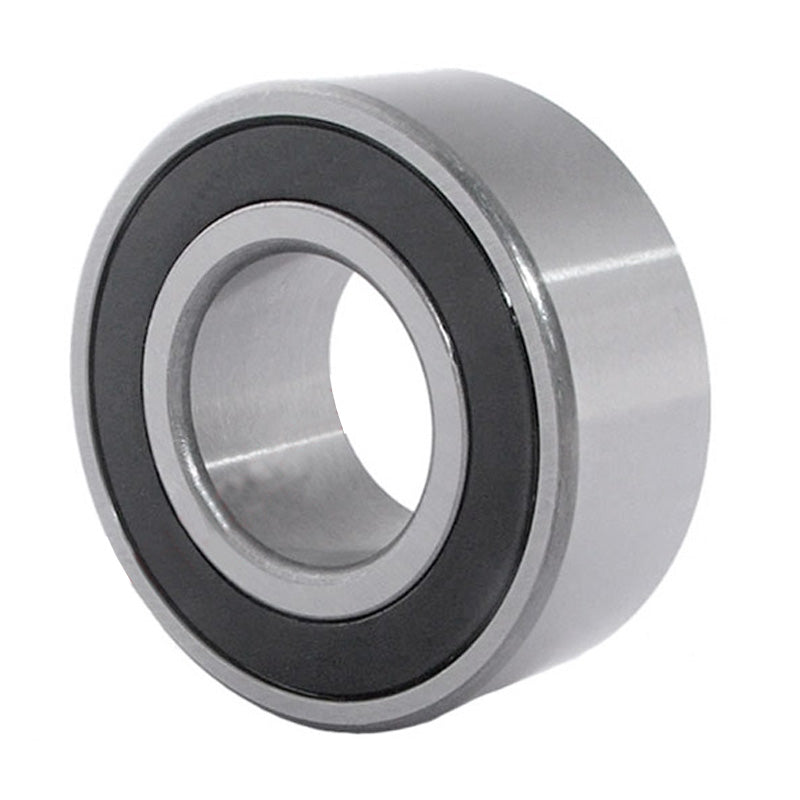

KSM 52122RS Rubber Sealed Double Row Angular Contact Ball Bearing 60x110x36.5mm
KSM 52122RS Rubber Sealed Double Row Angular Contact Ball Bearing 60x110x36.5mm
Regular price
$92.50
ex VAT
Regular price
Sale price
$92.50
ex VAT
Equivalent to: 32122RS
In stock
Price Break
10+
$82.33
19+
$77.70
29+
$76.78
39+
$75.85
49+
$74.93
74+
$74.00
99+
$69.38
199+
$68.45
249+
$67.53
499+
$66.60
999+
$64.75
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 32122RS
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 32122RS
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 36.5mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 60mm |
| D | 110mm |
| B | 36.5mm |
| --- | Abutment Dimensions |
| a | 65.5mm |
| r1r2 min | 1.5mm |
| r1r2 max | 1.5mm |
| Da min | 68.5mm |
| da max | 101.5mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 71500 N |
| Basic Static Load Raiting Cor | 58500 N |
| Limiting Speed in Grease | 3400 rpm |
| Limiting Speed in Oil | 1500 rpm |
| Weight | 1.27 kg |
