SKU: 52205-SKF

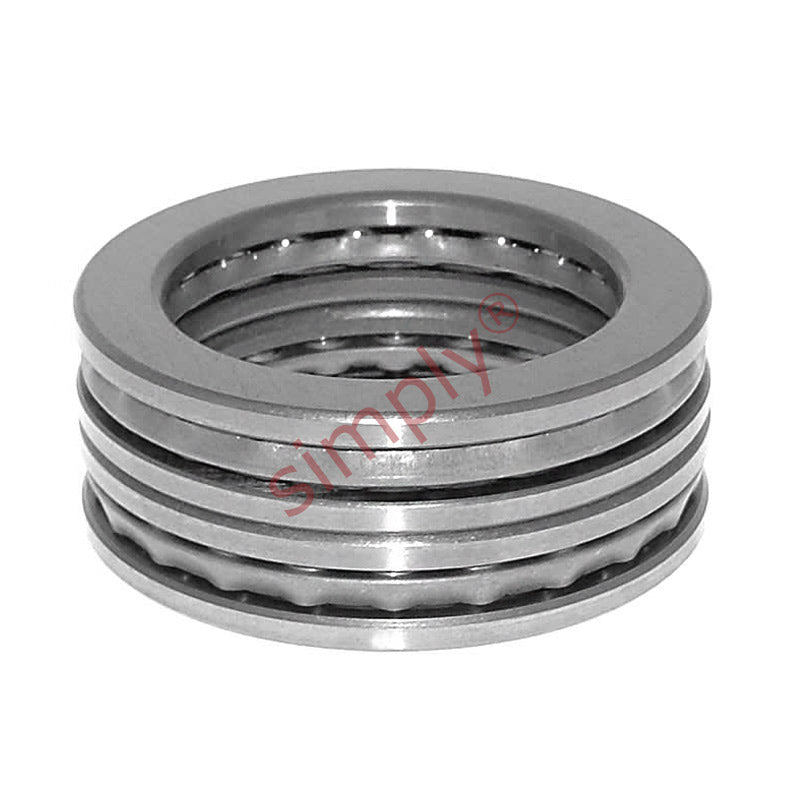

SKF 52205 Double Thrust Ball Bearing with Flat Seats 20x47x28mm
SKF 52205 Double Thrust Ball Bearing with Flat Seats 20x47x28mm
Regular price
$64.18
ex VAT
Regular price
Sale price
$64.18
ex VAT
In stock
Price Break
10+
$57.12
19+
$53.91
29+
$53.27
39+
$52.63
49+
$51.99
74+
$51.34
99+
$48.14
199+
$47.49
249+
$46.85
499+
$46.21
999+
$44.93
Couldn't load pickup availability
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 28mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| H | 28mm |
| Dynamic load C | 27.6 kN |
| Static load Co | 55 kN |
| Fatigue load limit Pu | 2.04 kN |
| Minimum load factor A | 0.015 |
| Reference speed | 5300 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.22 kg |
| D1 | 27mm |
| B | 7mm |
| r1r2 | 0.6mm |
| r3r4 | 0.3mm |
| da | 25mm |
| Da max | 34mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
