SKU: 52209-SKF

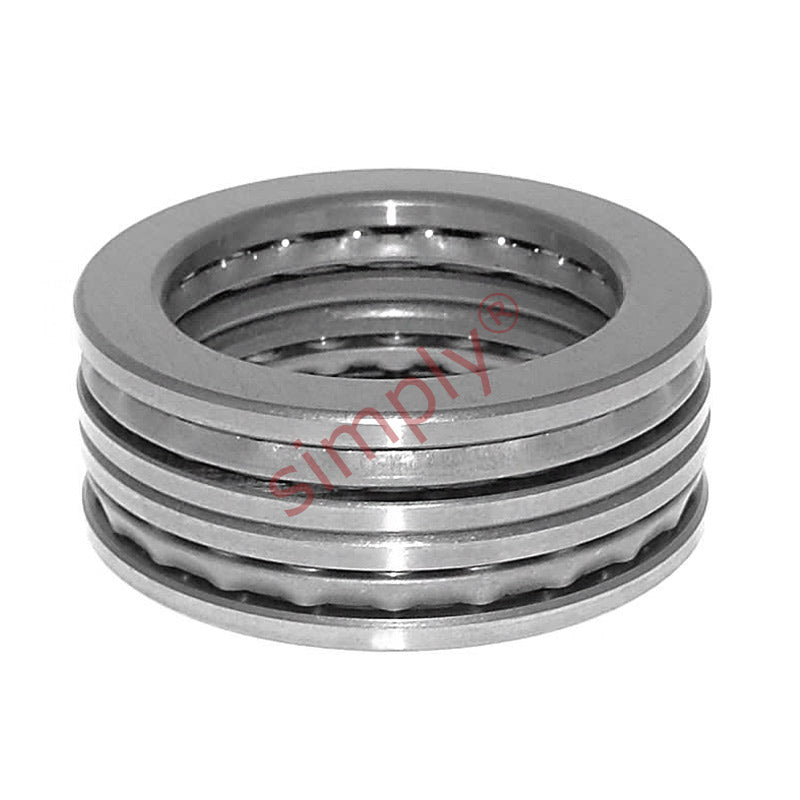

SKF 52209 Double Thrust Ball Bearing with Flat Seats 35x73x37mm
SKF 52209 Double Thrust Ball Bearing with Flat Seats 35x73x37mm
Regular price
$110.18
ex VAT
Regular price
Sale price
$110.18
ex VAT
In stock
Price Break
10+
$98.06
19+
$92.55
29+
$91.45
39+
$90.35
49+
$89.25
74+
$88.14
99+
$82.64
199+
$81.53
249+
$80.43
499+
$79.33
999+
$77.13
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 73mm
- Width:
- 37mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 73mm |
| H | 37mm |
| Dynamic load C | 39 kN |
| Static load Co | 86.5 kN |
| Fatigue load limit Pu | 3.2 kN |
| Minimum load factor A | 0.038 |
| Reference speed | 3600 rpm |
| Limiting speed | 5000 rpm |
| Weight | 0.6 kg |
| D1 | 47mm |
| B | 9mm |
| r1r2 | 1mm |
| r3r4 | 0.6mm |
| da | 45mm |
| Da max | 56mm |
| ra max | 1mm |
| rb max | 0.6mm |
