SKU: 52210-SKF

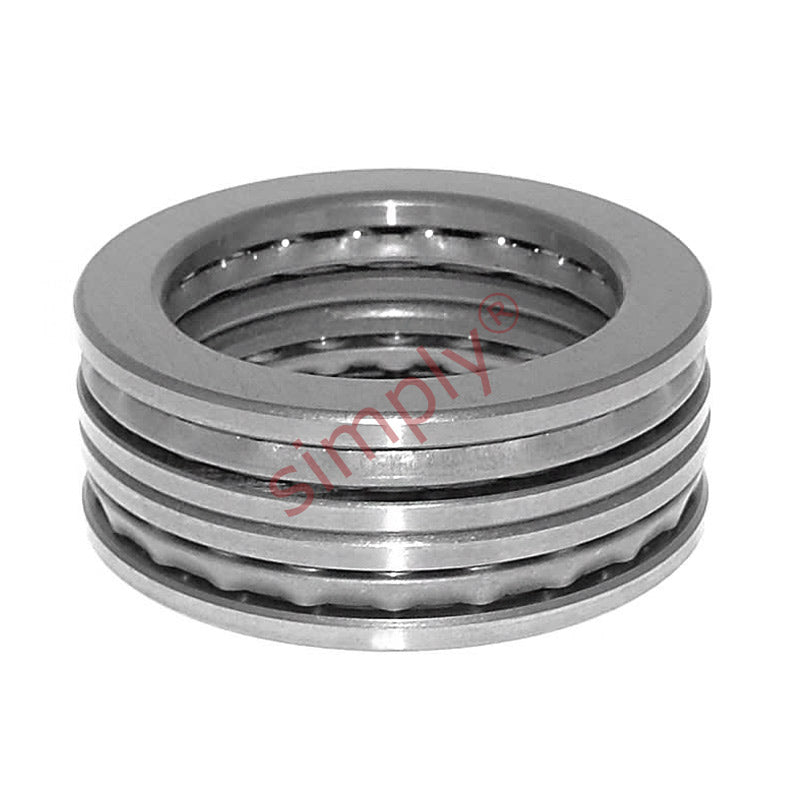

SKF 52210 Double Thrust Ball Bearing with Flat Seats 40x78x39mm
SKF 52210 Double Thrust Ball Bearing with Flat Seats 40x78x39mm
Regular price
$115.01
ex VAT
Regular price
Sale price
$115.01
ex VAT
In stock
Price Break
10+
$102.36
19+
$96.61
29+
$95.46
39+
$94.31
49+
$93.16
74+
$92.01
99+
$86.26
199+
$85.11
249+
$83.96
499+
$82.81
999+
$80.51
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 78mm
- Width:
- 39mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 78mm |
| H | 39mm |
| Dynamic load C | 49.4 kN |
| Static load Co | 116 kN |
| Fatigue load limit Pu | 4.3 kN |
| Minimum load factor A | 0.069 |
| Reference speed | 3400 rpm |
| Limiting speed | 4500 rpm |
| Weight | 0.71 kg |
| D1 | 52mm |
| B | 9mm |
| r1r2 | 1mm |
| r3r4 | 0.6mm |
| da | 50mm |
| Da max | 61mm |
| ra max | 1mm |
| rb max | 0.6mm |
