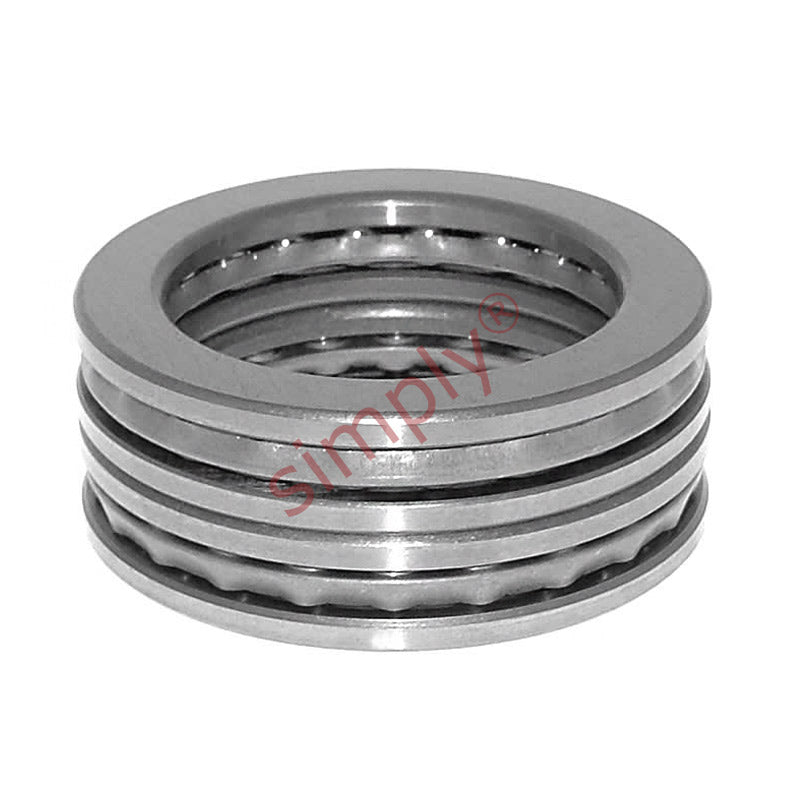

SKF 52216 Double Thrust Ball Bearing with Flat Seats 65x115x48mm
SKF 52216 Double Thrust Ball Bearing with Flat Seats 65x115x48mm
Regular price
$267.79
ex VAT
Regular price
Sale price
$267.79
ex VAT
In stock
Price Break
10+
$238.33
19+
$224.94
29+
$222.27
39+
$219.59
49+
$216.91
74+
$214.23
99+
$200.84
199+
$198.16
249+
$195.49
499+
$192.81
999+
$187.45
Couldn't load pickup availability
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 115mm
- Width:
- 48mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 115mm |
| H | 48mm |
| Dynamic load C | 76.1 kN |
| Static load Co | 208 kN |
| Fatigue load limit Pu | 7.65 kN |
| Minimum load factor A | 0.22 |
| Reference speed | 2400 rpm |
| Limiting speed | 3400 rpm |
| Weight | 1.7 kg |
| D1 | 82mm |
| B | 10mm |
| r1r2 | 1mm |
| r3r4 | 1mm |
| da | 80mm |
| Da max | 94mm |
| ra max | 1mm |
| rb max | 1mm |
