SKU: 52222-SKF

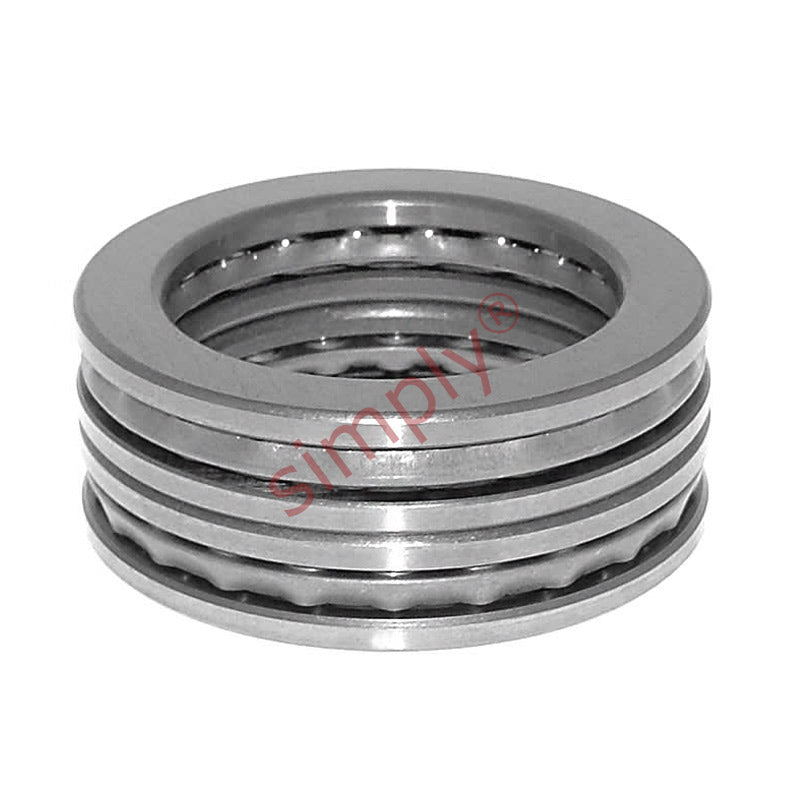

SKF 52222 Double Thrust Ball Bearing with Flat Seats 95x160x67mm
SKF 52222 Double Thrust Ball Bearing with Flat Seats 95x160x67mm
Regular price
$720.31
ex VAT
Regular price
Sale price
$720.31
ex VAT
In stock
Price Break
10+
$641.08
19+
$605.06
29+
$597.86
39+
$590.65
49+
$583.45
74+
$576.25
99+
$540.23
199+
$533.03
249+
$525.83
499+
$518.62
999+
$504.22
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 160mm
- Width:
- 67mm
Technical
Technical
| d | 95mm |
|---|---|
| D | 160mm |
| H | 67mm |
| Dynamic load C | 130 kN |
| Static load Co | 390 kN |
| Fatigue load limit Pu | 12.5 kN |
| Minimum load factor A | 0.79 |
| Reference speed | 1700 rpm |
| Limiting speed | 2400 rpm |
| Weight | 4.65 kg |
| D1 | 113mm |
| B | 15mm |
| r1r2 | 1.1mm |
| r3r4 | 1mm |
| da | 110mm |
| Da max | 130mm |
| ra max | 1mm |
| rb max | 1mm |
