SKU: 52224-EU

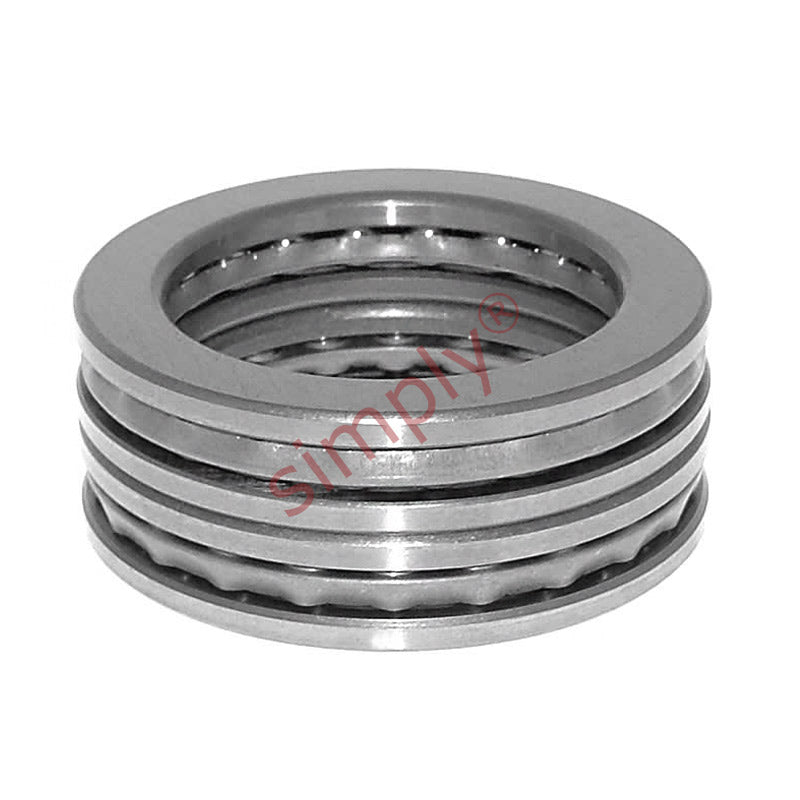

52224 Budget Double Thrust Ball Bearing with Flat Seats 100x170x68mm
52224 Budget Double Thrust Ball Bearing with Flat Seats 100x170x68mm
Regular price
$722.48
ex VAT
Regular price
Sale price
$722.48
ex VAT
In stock
Price Break
10+
$643.01
19+
$606.88
29+
$599.66
39+
$592.43
49+
$585.21
74+
$577.98
99+
$541.86
199+
$534.64
249+
$527.41
499+
$520.19
999+
$505.74
Description
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 170mm
- Width:
- 68mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 170mm |
| H | 68mm |
| Dynamic load C | 140 kN |
| Static load Co | 440 kN |
| Fatigue load Pu | 13.4 kN |
| Minimum load factor A | 1 |
| Reference speed | 1600 rpm |
| Limiting speed | 2200 rpm |
| Weight | 5.25 kg |
| D1 | 123mm |
| B | 15mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| da | 120mm |
| Da max | 140mm |
| ra max | 1mm |
| rb max | 1mm |
