SKU: 52226-SKF

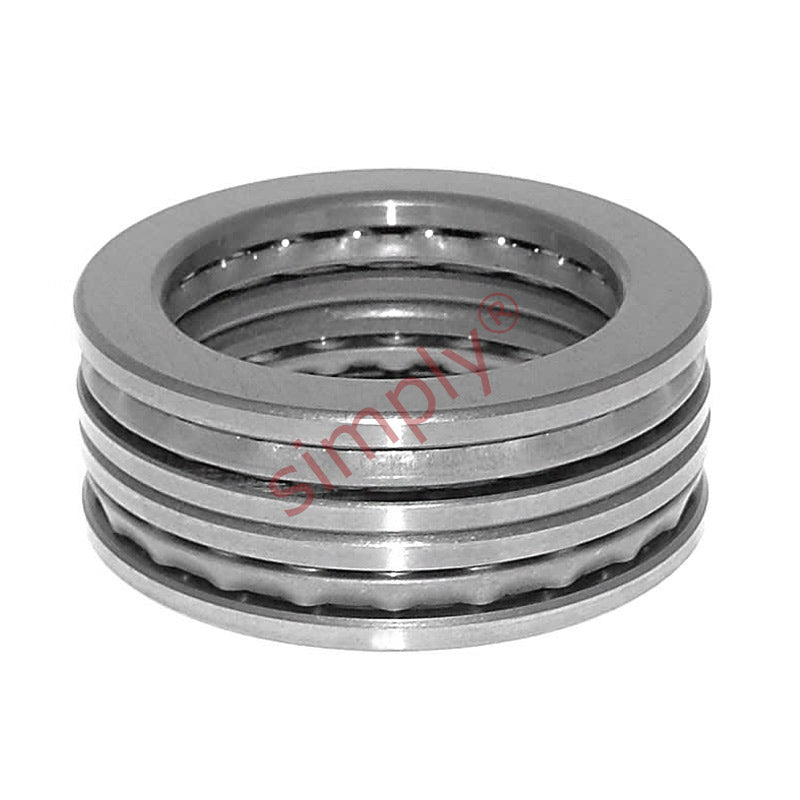

SKF 52226 Double Thrust Ball Bearing with Flat Seats 110x190x80mm
SKF 52226 Double Thrust Ball Bearing with Flat Seats 110x190x80mm
Regular price
$973.65
ex VAT
Regular price
Sale price
$973.65
ex VAT
In stock
Price Break
10+
$866.55
19+
$817.87
29+
$808.13
39+
$798.39
49+
$788.66
74+
$778.92
99+
$730.24
199+
$720.50
249+
$710.76
499+
$701.03
999+
$681.56
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 190mm
- Width:
- 80mm
Technical
Technical
| d | 110mm |
|---|---|
| D | 190mm |
| H | 80mm |
| Dynamic load C | 186 kN |
| Static load Co | 585 kN |
| Fatigue load limit Pu | 17 kN |
| Minimum load factor A | 1.8 |
| Reference speed | 1400 rpm |
| Limiting speed | 2000 rpm |
| Weight | 8 kg |
| D1 | 133mm |
| B | 18mm |
| r1r2 | 1.5mm |
| r3r4 | 1.1mm |
| da | 130mm |
| Da max | 154mm |
| ra max | 1.5mm |
| rb max | 1mm |
