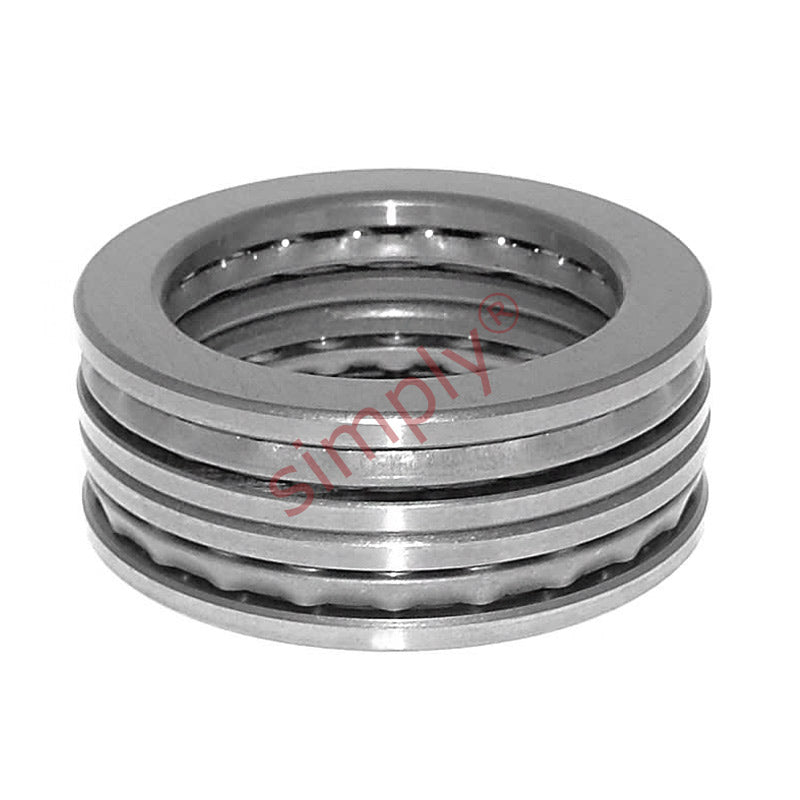

52310 Budget Double Thrust Ball Bearing with Flat Seats 40x95x58mm
52310 Budget Double Thrust Ball Bearing with Flat Seats 40x95x58mm
Regular price
$209.55
ex VAT
Regular price
Sale price
$209.55
ex VAT
In stock
Price Break
10+
$186.50
19+
$176.02
29+
$173.93
39+
$171.83
49+
$169.74
74+
$167.64
99+
$157.16
199+
$155.07
249+
$152.97
499+
$150.88
999+
$146.69
Description
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 95mm
- Width:
- 58mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 95mm |
| H | 58mm |
| Dynamic load C | 88.4 kN |
| Static load Co | 190 kN |
| Fatigue load Pu | 6.95 kN |
| Minimum load factor A | 0.19 |
| Reference speed | 2600 rpm |
| Limiting speed | 3600 rpm |
| Weight | 1.75 kg |
| D1 | 52mm |
| B | 14mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| da | 50mm |
| Da max | 68mm |
| ra max | 1mm |
| rb max | 0.6mm |
