SKU: 52312-SKF

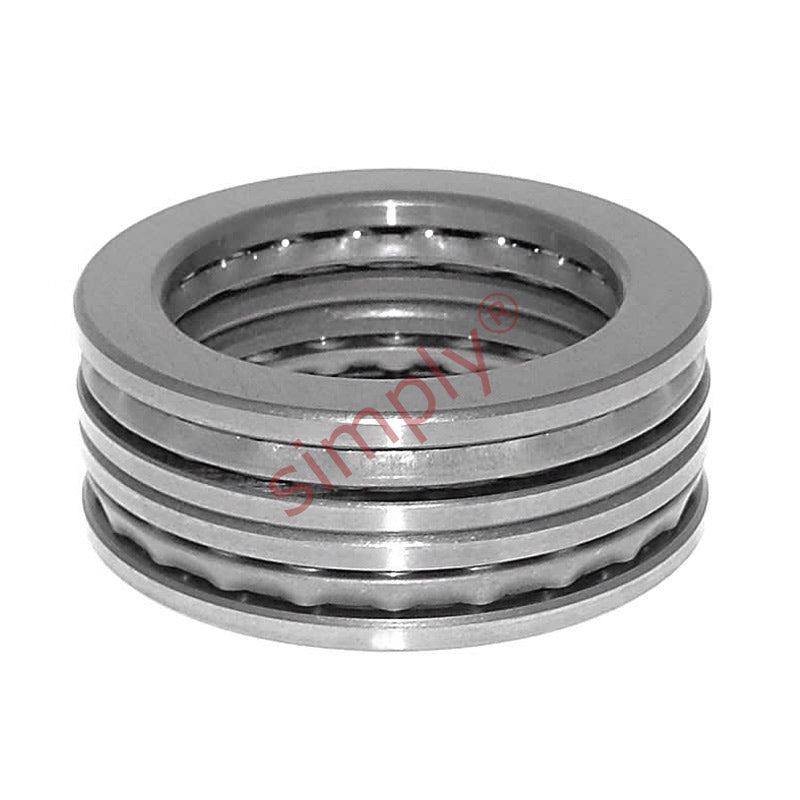

SKF 52312 Double Thrust Ball Bearing with Flat Seats 50x110x64mm
SKF 52312 Double Thrust Ball Bearing with Flat Seats 50x110x64mm
Regular price
$433.37
ex VAT
Regular price
Sale price
$433.37
ex VAT
In stock
Price Break
10+
$385.70
19+
$364.03
29+
$359.70
39+
$355.36
49+
$351.03
74+
$346.70
99+
$325.03
199+
$320.69
249+
$316.36
499+
$312.03
999+
$303.36
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 64mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| H | 64mm |
| Dynamic load C | 101 kN |
| Static load Co | 224 kN |
| Fatigue load limit Pu | 8.3 kN |
| Minimum load factor A | 0.26 |
| Reference speed | 1600 rpm |
| Limiting speed | 2200 rpm |
| Weight | 2.55 kg |
| D1 | 62mm |
| B | 15mm |
| r1r2 | 1.1mm |
| r3r4 | 0.6mm |
| da | 60mm |
| Da max | 80mm |
| ra max | 1mm |
| rb max | 0.6mm |
